Superwinch SX12 12000 lb 12V DC Winch w/ Steel Wire Rope - Graphite

Superwinch SX12 12000 lb 12V DC Winch w/ Steel Wire Rope - Graphite

Item Number: 192504
Unit Price: $808.99
Ships From Manufacturer
Quantity

Manufacturer Part Number1710220
NEW
Free Ground Shipping to the Continental US
Superwinch
 Detailed Description

SX12 12000 lb 12V DC Winch with Steel Wire Rope Graphite - 1712200


Description

SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Produces 12,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and steel wire rope this winch has it all.


  • 12,000 lbs. capacity
  • 6.0 HP sealed motor

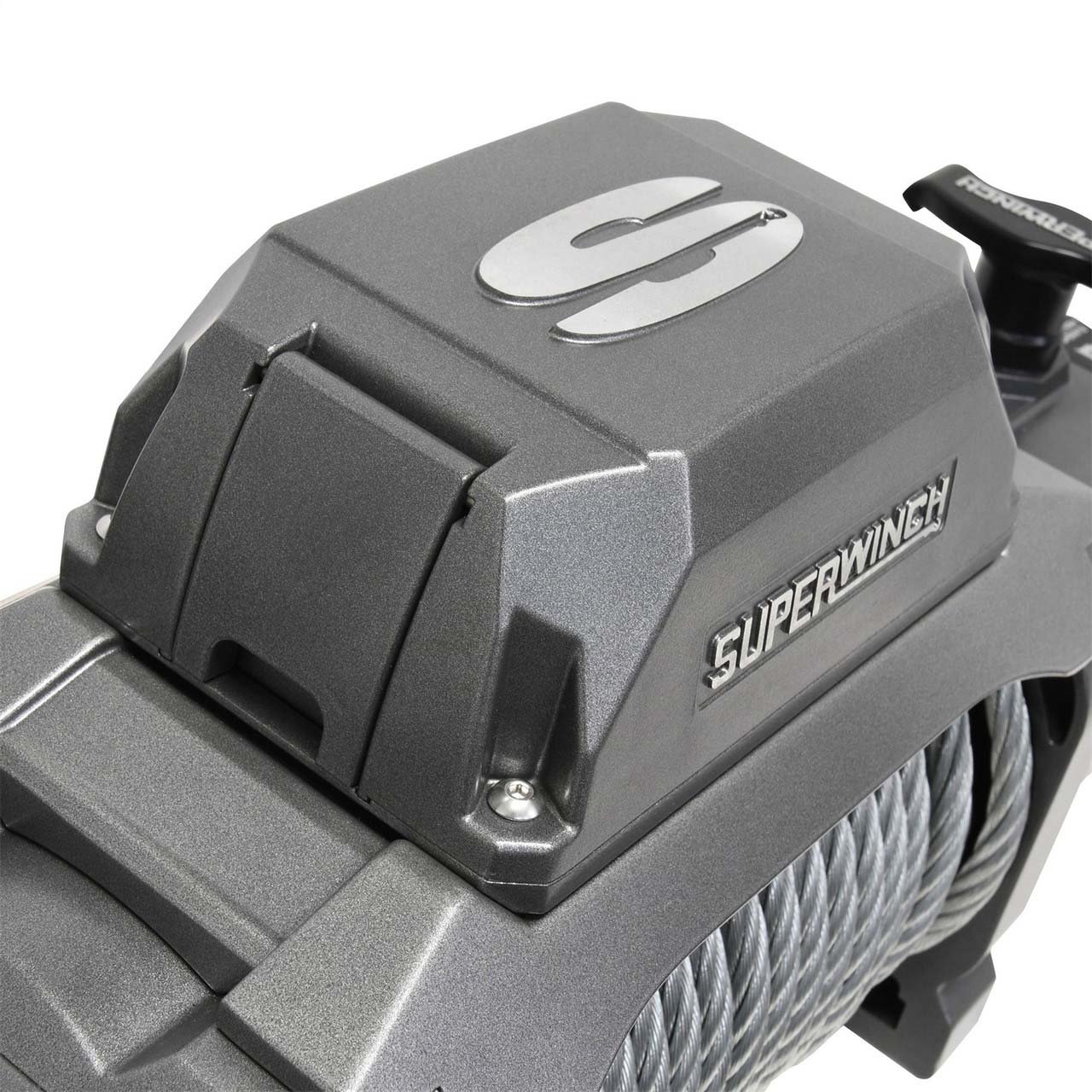

  • Relocatable die-cast aluminum control box
  • 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight (2277R Wireless Remote Upgrade Kit available)
  • Ergonomic pull-and turn clutch handle
  • 3-stage planetary gearing with 231:1 ratio
  • Patented drum light
  • 5/8 in. x 85 ft. wire rope
  • Drum diameter measures 2.5 in.
  • Heavy duty clevis winch hook
  • Stainless steel roller fairlead
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
  • Clockable gearbox



Specifications:

SKU:1712200
UPC:022705003896
Condition:New
Weight:90.00 LBS
Width:13.00 (in)Height:12.00 (in)Depth:24.00 (in)
Winch Series:SX Series674.10
Color:Graphite
Material:Steel
Surface Finish:Powder Coated
Drum:Durable fully welded steel drum
Fairlead:Stainless Steel 4-Way Roller
Gear Ratio:231:1
Gear System:3-stage planetary
Rope Length:3/8 in x 85 ft (9.5mm x 26m)
Rope Material:Steel Wire
Warranty:Other
Winch Type:Electric
Voltage:12V DC
Task Lighting:Patented drum light
IP Rating:IP68 Waterproof and Dustproof
Control Box:Relocatable Die-Cast Aluminum
Winch Hook:Heavy-Duty, Clevis Pinned Latched
Remote Type:Wire
Motor:6.0 HP, 12V DC
Line Speed:68 Amps Motor Draw/23.4 FPM (7.13 MPM)
EN Compliant:No
Clutch:Pull and turn clutch handle
Brake System:100% Full-load holding automatic mechanical brake
Winch Model:SX Series
Capacity:12000
