Superwinch SX10 10000 lb 12V DC Winch with Steel Wire Rope - Graphite

Superwinch SX10 10000 lb 12V DC Winch with Steel Wire Rope - Graphite

Item Number: 192500
Unit Price: $727.99
Ships From Manufacturer
Quantity

Manufacturer Part Number1710200
NEW
Free Ground Shipping to the Continental US
Superwinch
 Detailed Description

SX10 10000 lb 12V DC Winch with Steel Wire Rope Graphite - 1710200


Description

The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Available in 10,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and steel winch rope, this winch has it all.


  • 10,000 lbs. capacity
  • 5.5 HP sealed motor
  • Relocatable die-cast aluminum control box
  • 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight (2277R Wireless Remote Upgrade Kit available)
  • Ergonomic pull-and turn clutch handle
  • 3-stage planetary gearing with 218:1 ratio
  • Patented drum light
  • 3/8 in. x 85 ft. wire rope
  • Drum diameter measures 2.5 in.
  • Heavy duty clevis winch hook
  • Stainless steel roller fairlead
  • 100% full load holding automatic mechanical brake

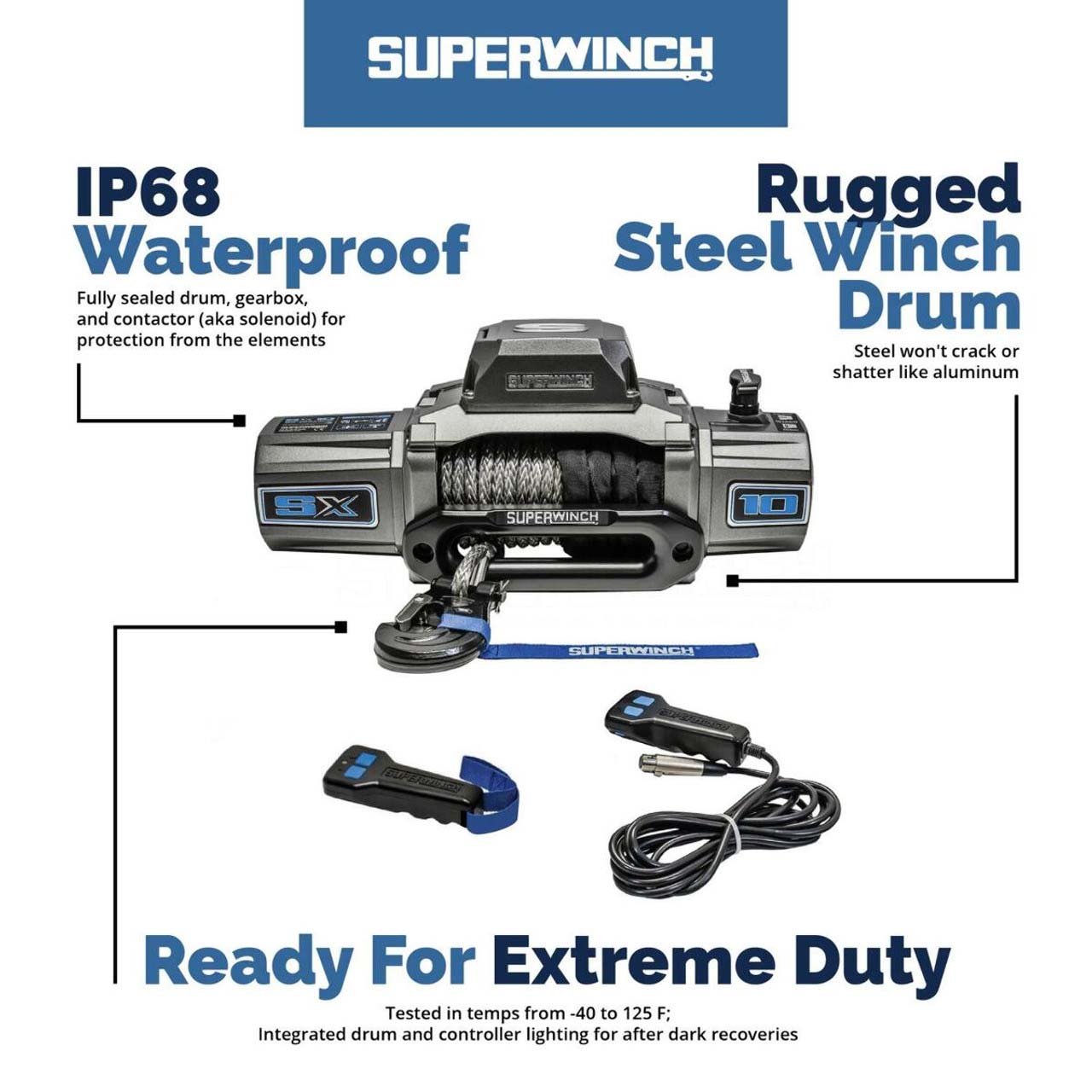

  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
  • Clockable gearbox


Specifications:

SKU:1710200
UPC:022705003872
Condition:New
Weight:88.00
LBSWidth:13.00 (in)Height:12.00 (in)Depth:24.00 (in)
Capacity:10000
Size:10,000 lb606.69
Color:Graphite
Material:Steel
Surface Finish:Powder Coated
Drum:Durable fully welded steel drum
Fairlead:Stainless Steel 4-Way RollerGear
Ratio:218:1
Gear System:3-stage planetary
Rope Length:3/8 in x 85 ft (9.5mm x 26m)
Rope Material:Steel Wire
Warranty:Other
Winch Series:SX Series
Winch Type:Electric
Voltage:12V DC
Task Lighting:Patented drum light
IP Rating:IP68 Waterproof and Dustproof
Control Box:Relocatable Die-Cast Aluminum
Winch Hook:Heavy-Duty, Clevis Pinned Latched
Remote Type:Wire
Motor:5.5 HP, 12V DC
Line Speed:85 Amps Motor Draw/27.3 FPM (8.32 MPM)
EN Compliant:No
Clutch:Pull and turn clutch handle
Brake System:100% Full-load holding automatic mechanical brake
Winch Model:SX Series
