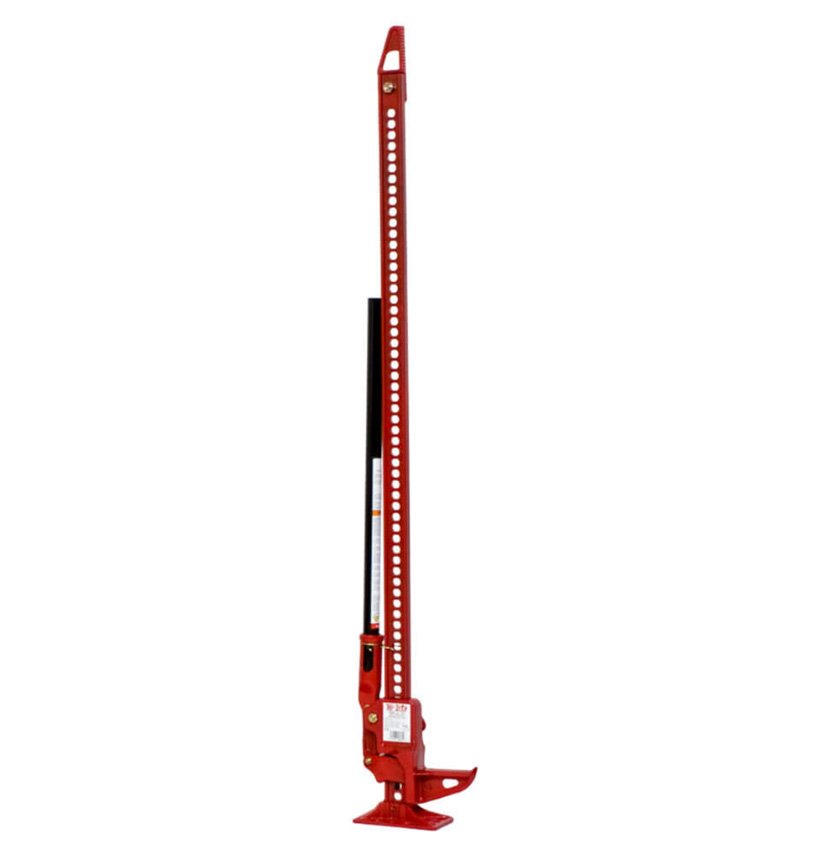

Hi-Lift® X-TREME Jack
The Hi-Lift® X-TREME is for the serious Hi-Lift® user, offering the "top of the line" all-cast version (48" or 60" sizes) with a special top winch-clamp-spreader attachment that provides the ultimate in multi-use functionality.
The X-TREME Top Clamp replaces the top clamp-clevis of the standard Hi-Lift® models and provides the ability to winch, clamp, and spread up to 5,000 lbs.
Features:
- All-Cast Construction
- 7000lb (3175.14kg) Tested Capacity
- Lifts, Winches, Clamps, & More
- A must-have for the serious Hi-Lift user!
- Tested and certified to meet applicable requirements of ASME B30.1-2015
Size 48" (122cm)
Min. Lift Height 4.5" (11.43 cm)
Max. Lift Height 38.63" (98.12 cm)
Overall Height 50.75" (128.91 cm)
Width 5" (12.7 cm)
Depth 9.63" (24.46 cm)
Rated Load (RL) 4,660 lbs (2,113 kg)
Tested Load (TL) 7,000 lbs (3,175 kg)
Winching Capacity 5,000 lbs (2,268 kg)
Clamping Capacity 5,000 lbs (2,268 kg)
Weight 28.16 lbs (12.77 kg)
|
