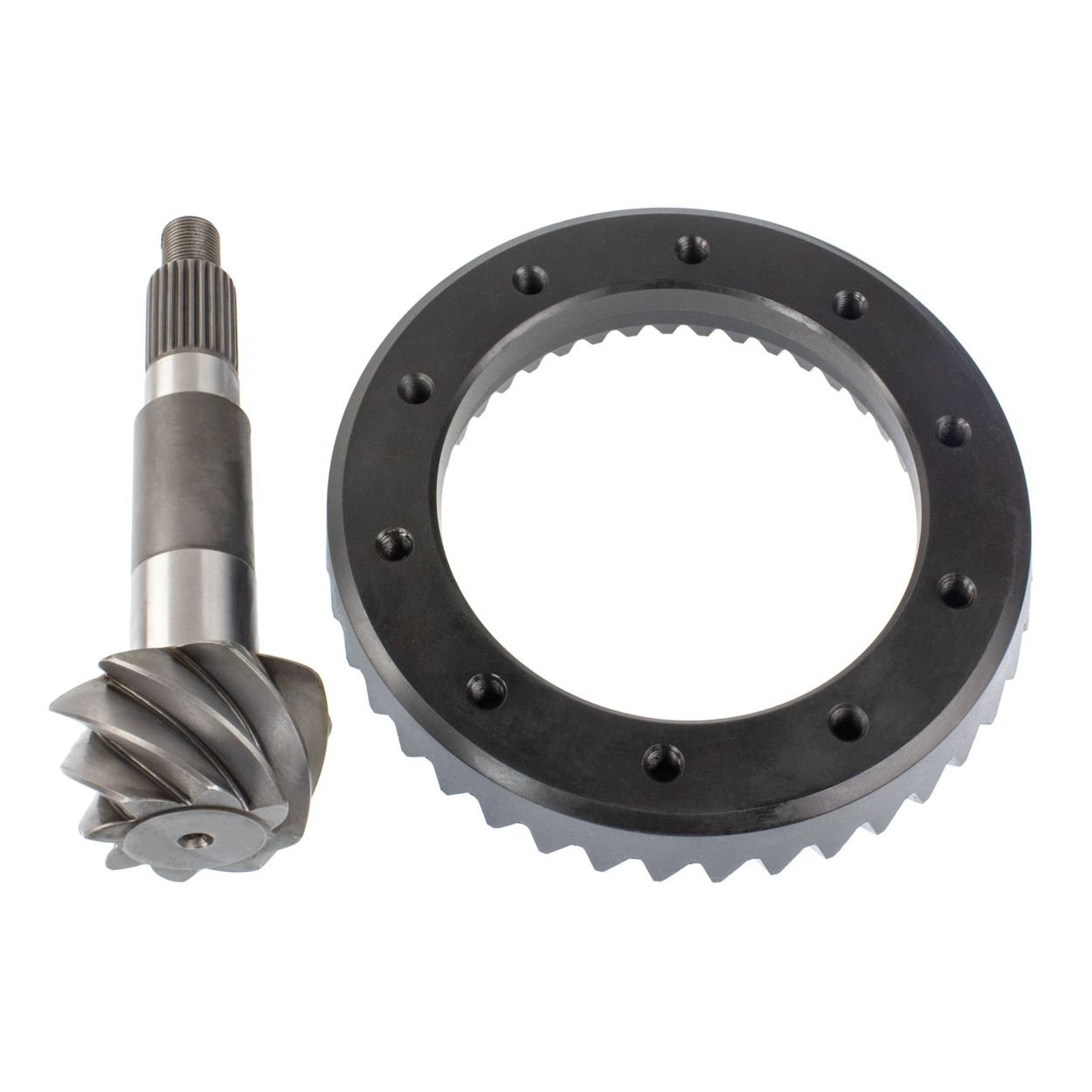

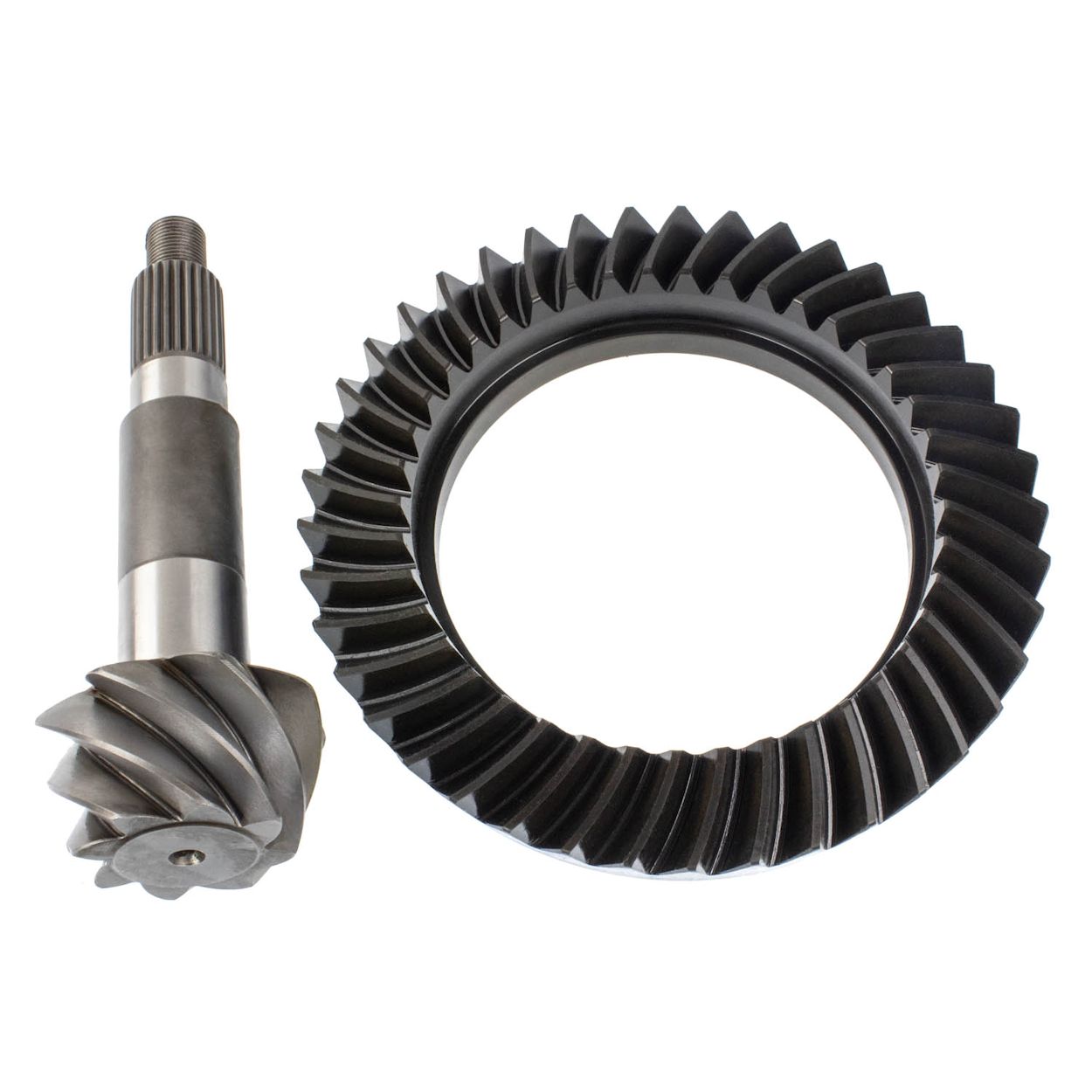

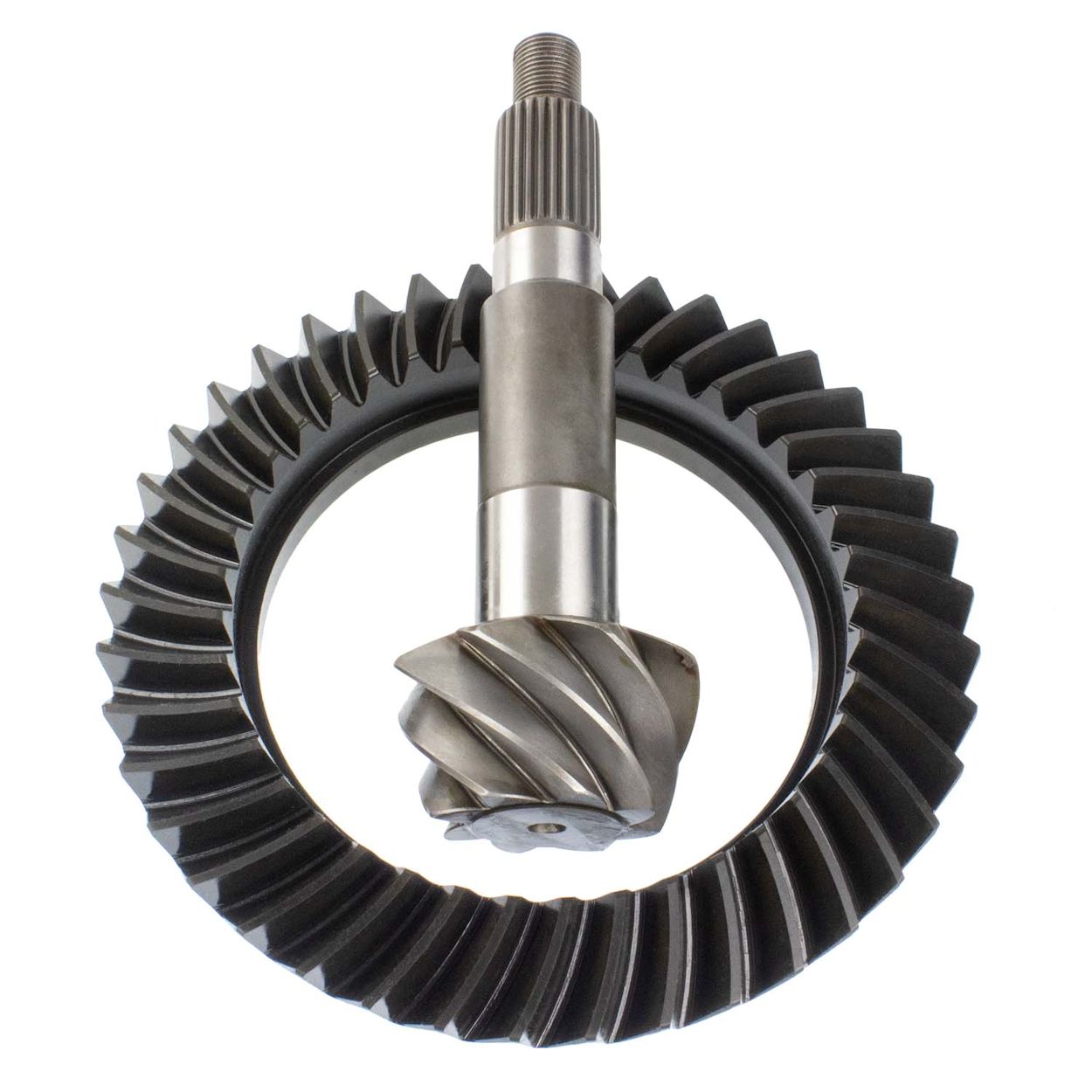

D44 Standard Rotation Ring and pinion.
Installation kit required for proper set up.
Ring and Pinion gears are the differential's critical point of power transfer. Ring and Pinion gears are probably the simplest performance modification one can do to a vehicle
Our Motive Gear Standard Performance Ring and Pinions are excellent replacements for original equipment and often installers comment on the superior strength and quality of our Ring and Pinions compared to some original equipment Ring and Pinions.
Our Standard Performance Ring and Pinions are suitable for street and off road use.
* Motive gear warrants that all new Motive Gear parts, except as otherwise provided herein, will be free from defects in material and workanship for the first 1 year or 50,000 miles, whichever occurs first. This warranty does not apply if any part has been modified, damaged or is defective as a result of any accident, misuse, use in competitive applications, improper installation, negligence, repair or alteration.
Other recommended parts:
Gear installation kit
Pinion flange
D44-354 Application Notes
For Dana 44
3.54 Ratio
3.73 Ratio Carrier and Lower
Dual Drilled for 3/8" and 7/16" Ring Gear Bolts
Warranty
1 Year or 50,000 Miles
D44-354 Specifications
Cover Bolt Quantity 10
Differential Carrier Break 3.73 and Lower
Differential Case Design Type Dana 44
Pinion Gear Tooth Quantity 13
Pinion Shaft Diameter 1.376 (Inch)
Pinion Spline Count 26
Ring & Pinion Gear Ratio 3.54
Ring Gear Bolt Quantity 10
Ring Gear Diameter 8.5 (Inch)
Ring Gear Material 8620 Steel
Ring Gear Rotation Standard
Ring Gear Tooth Quantity 46
Taxonomy A Differential LD
Taxonomy B Ring and Pinion
Taxonomy C Dana 44 Standard
Taxonomy D Front or Rear
|
