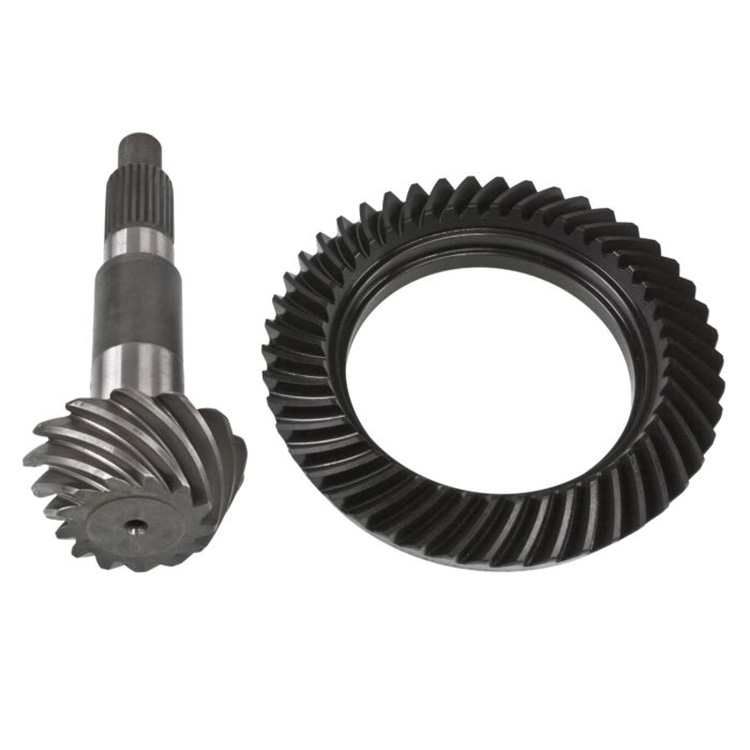

D30 Standard Rotation Ring and pinion.
Installation kit required for proper set up.
Ring and Pinion gears are the differential's critical point of power transfer. Ring and Pinion gears are probably the simplest performance modification one can do to a vehicle
Our Motive Gear Standard Performance Ring and Pinions are excellent replacements for original equipment and often installers comment on the superior strength and quality of our Ring and Pinions compared to some original equipment Ring and Pinions.
Our Standard Performance Ring and Pinions are suitable for street and off road use.
D30-373 Application Notes
For Dana 30
3.73 Ratio
3.73 Ratio Carrier and Higher
Warranty
1 Year or 50,000 Miles
D30-373 Specifications
Cover Bolt Quantity 10
Differential Carrier Break 3.73 and Higher
Differential Case Design Type Dana 30
Pinion Gear Tooth Quantity 11
Pinion Shaft Diameter 1.376 (Inch)
Pinion Spline Count 26
Ring & Pinion Gear Ratio 3.73
Ring Gear Bolt Quantity 10
Ring Gear Diameter 7.125 (Inch)
Ring Gear Material 8620 Steel
Ring Gear Rotation Standard
Ring Gear Tooth Quantity 41
Taxonomy A Differential LD
Taxonomy B Ring and Pinion
Taxonomy C Dana 30 Standard
Taxonomy D Front
|
