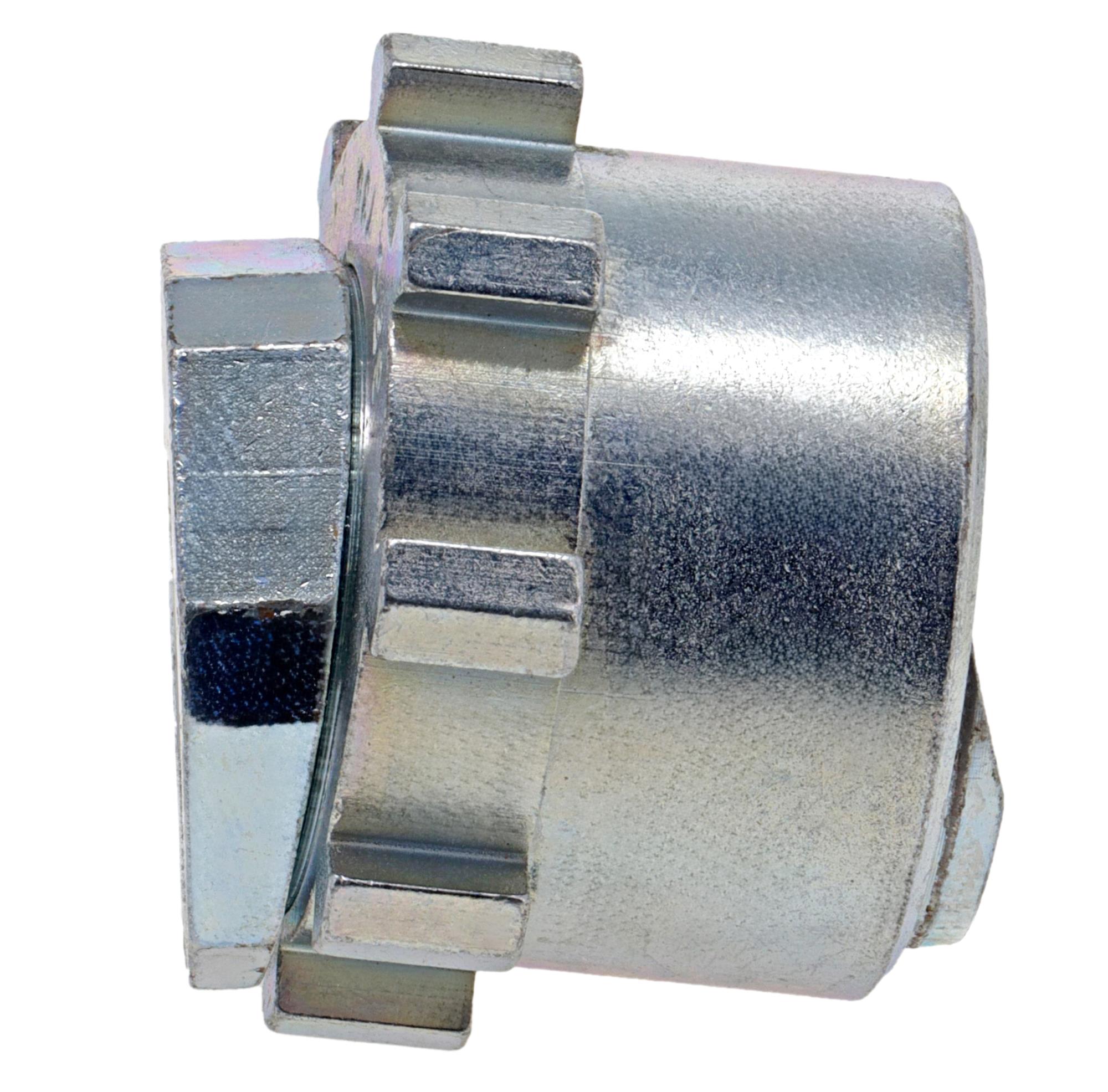

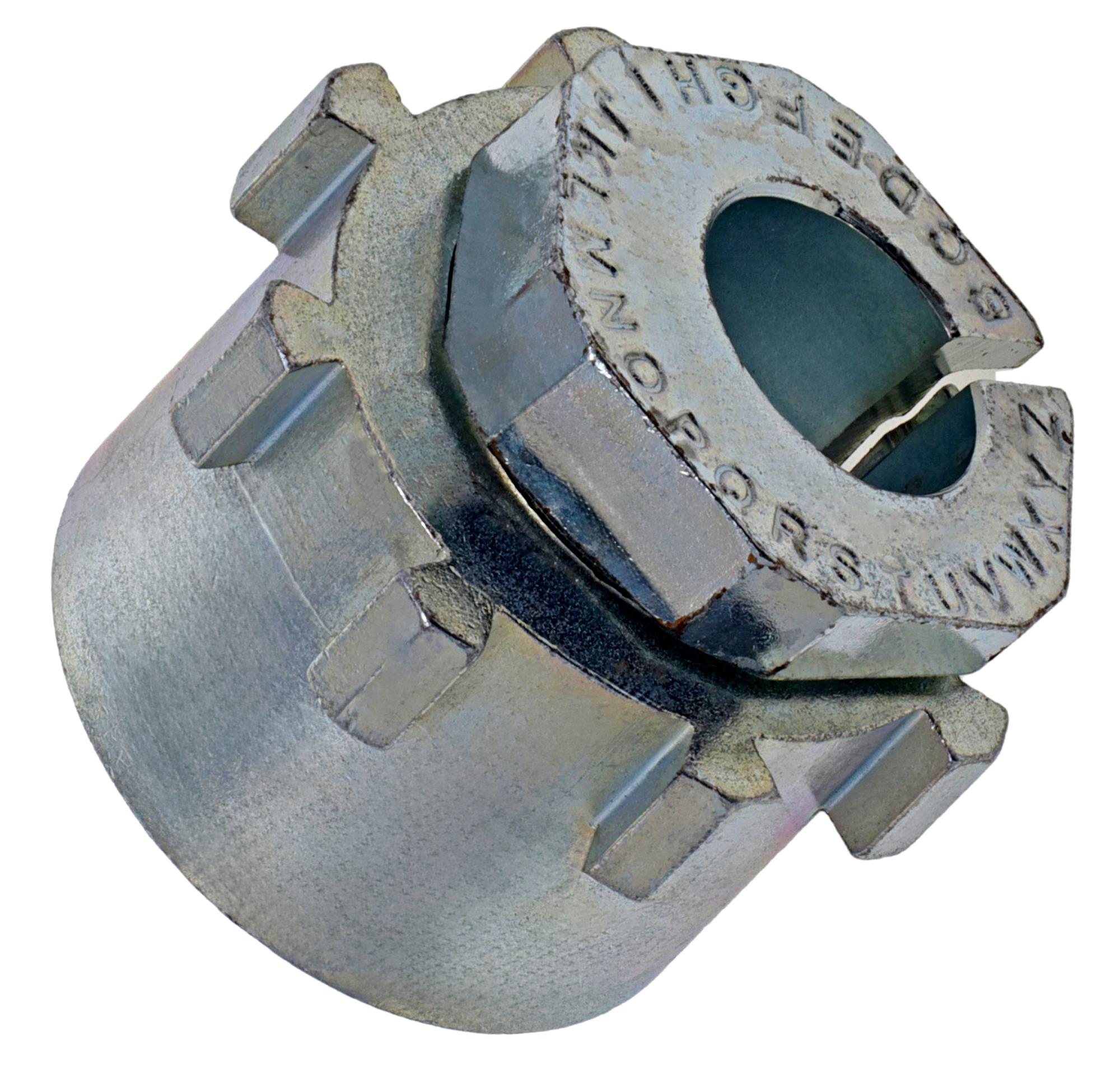

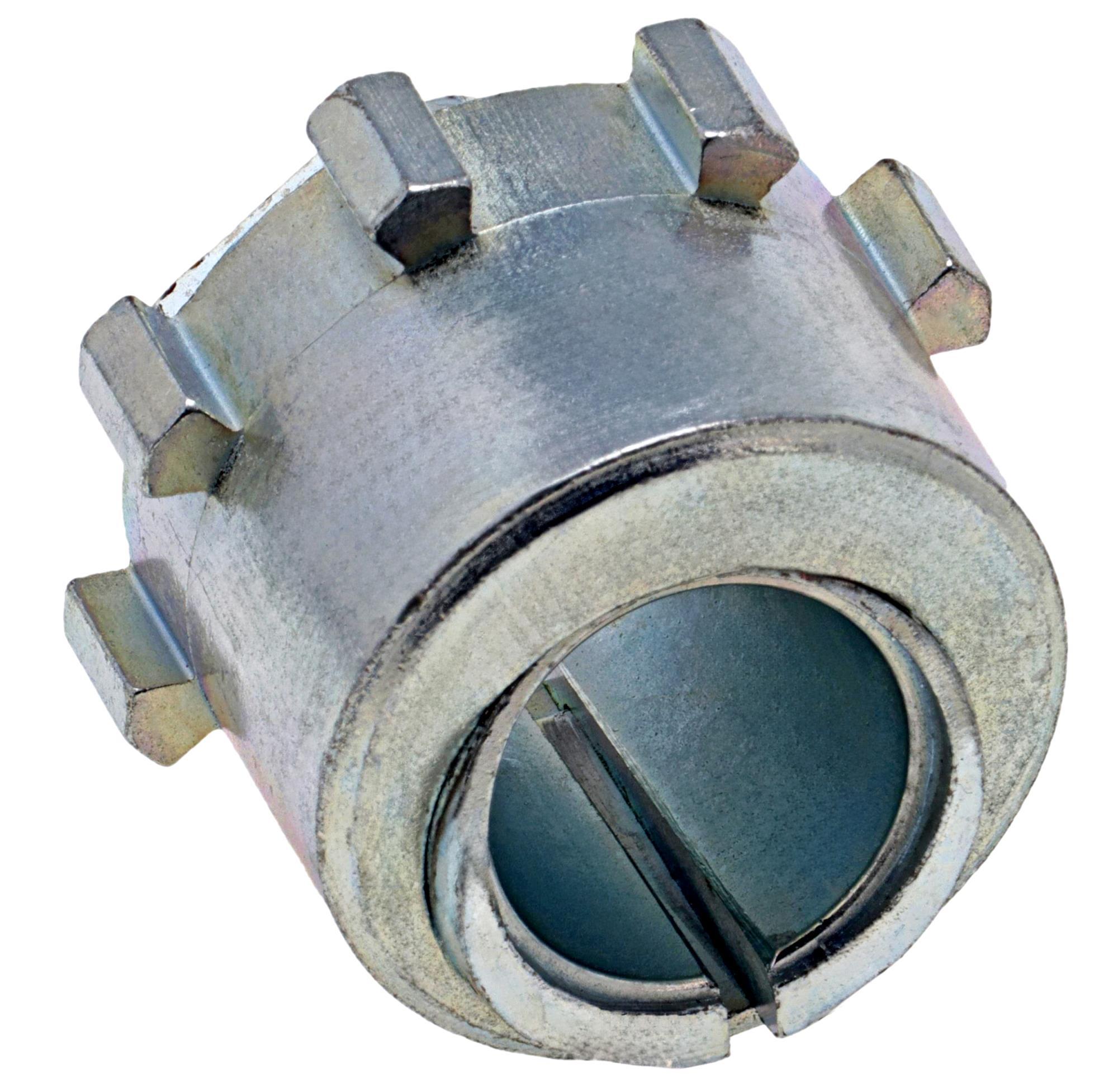

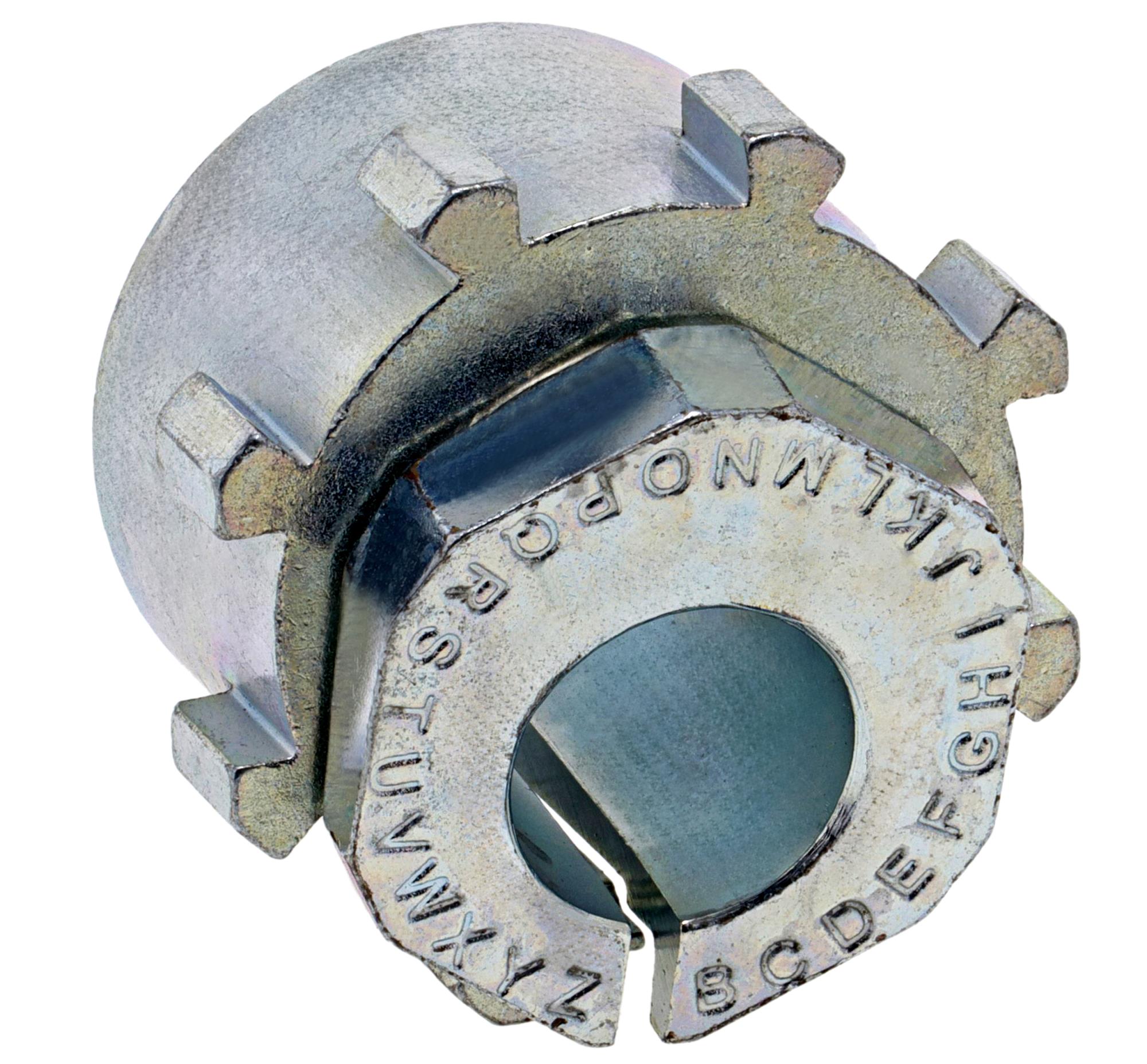

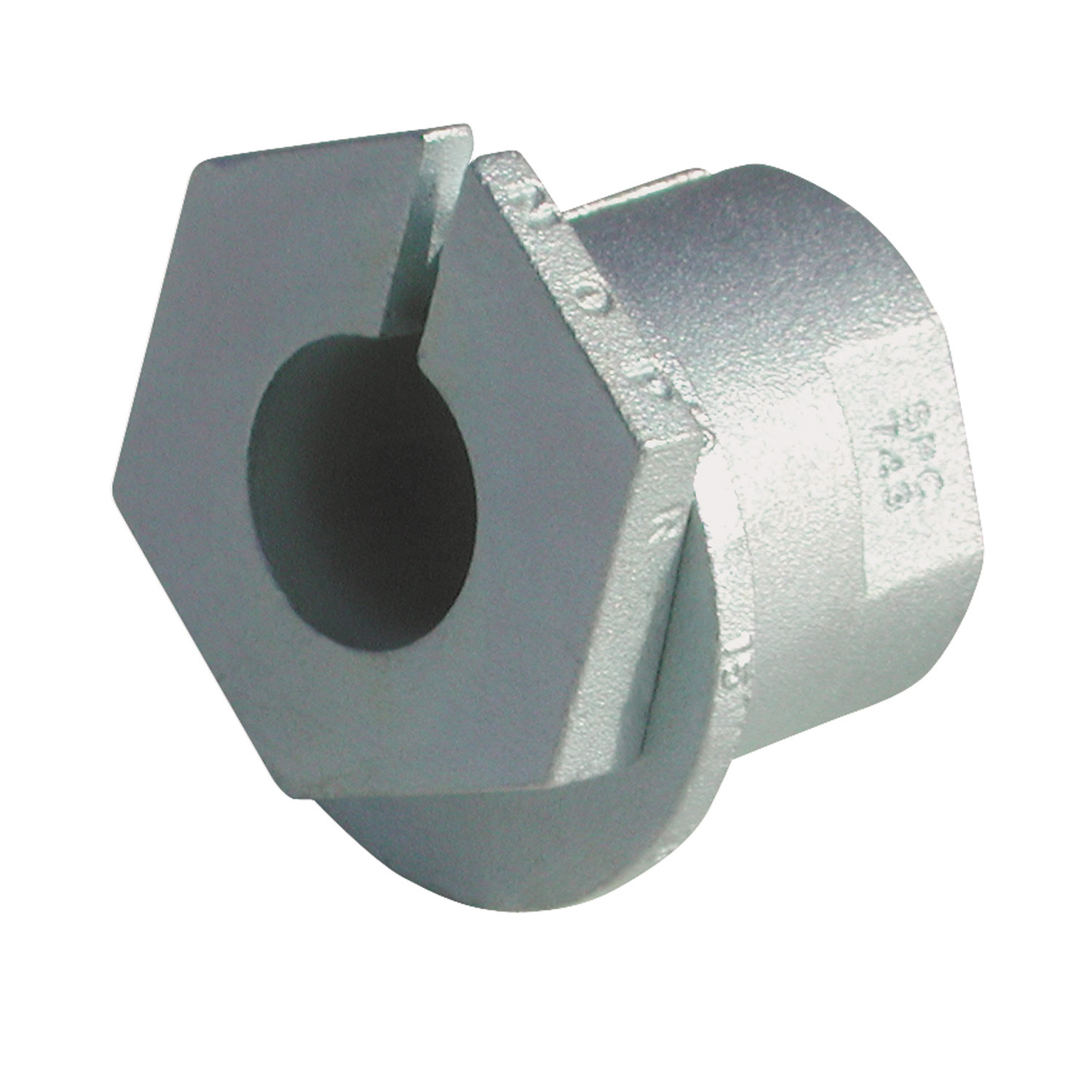

Adjustable Alignment Caster/Camber Bushing
The factory camber bushings, located above the upper ball joints, alter camber by changing the ball joint stud angle.
Your local Ford dealer or alignment shop offers these bushings for most vehicles in set increments of correction up to 2 degrees of change.
Adjustable camber/caster bushings offer a greater adjustment range than stock, and are normally needed with 1" to 2" lift coils.
With most trucks, if the full degree of correction is not needed for camber, the remainder can be rotated into caster.
These are the adjustable camber/caster bushings for Ford IFS Dana 28 front axle.
These come as a pair, you need 1 individual bushing per side.
Adjustment Range: Camber/Caster ±1.00° to ±2.75°
Inside Diameter: 0.65 Inches
Material: Steel
Outside Diameter: 1.28 Inches
Package Contents: Alignment Sleeve Assembly
|
