HEAVY-DUTY BW1356 OIL PUMP RUB REPAIR / CASE SAVER

Protect your BW1356 transfer case before the oil pump retainer arm wears through the case!

This custom-fabricated Oil Pump Retainer / Pump Rub Case Saver is designed specifically for the Borg Warner BW1356 transfer case.

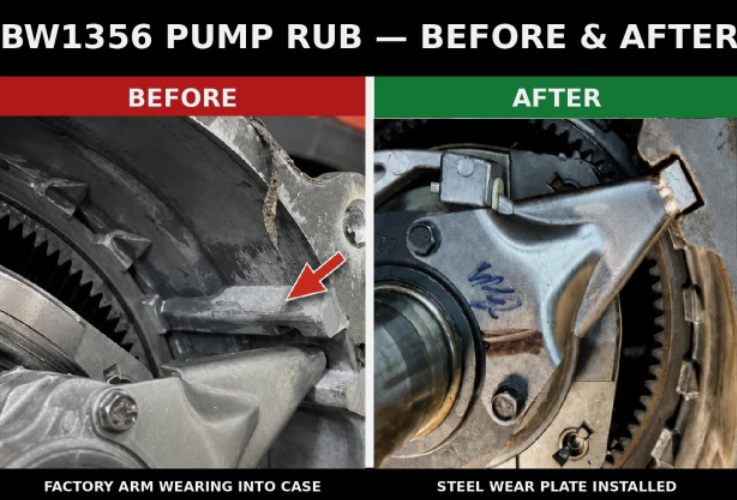

THE PROBLEM

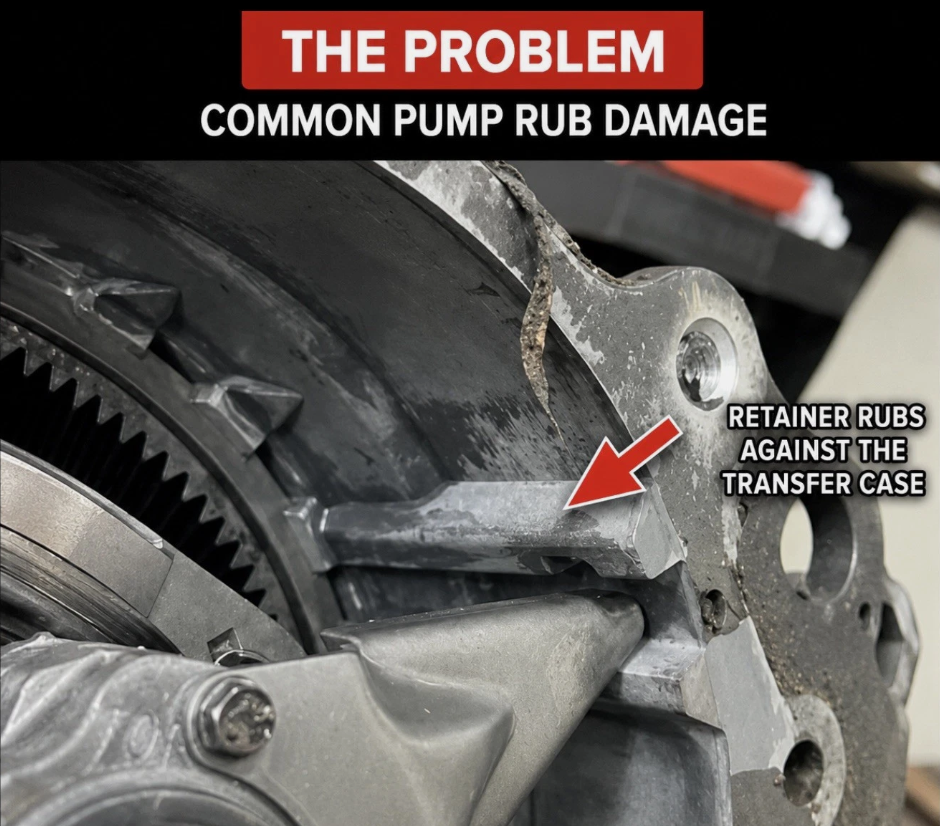

The factory oil pump retainer arm can wear against the relatively soft transfer case housing. Over time, this can create a groove in the case and eventually wear completely through the housing.

THE SOLUTION

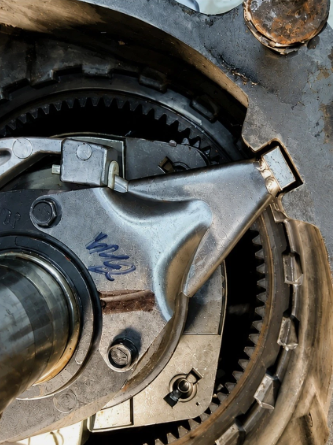

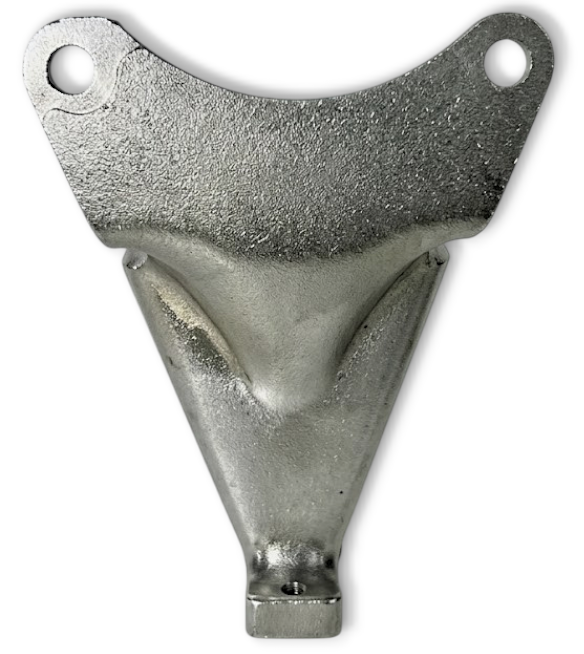

This upgraded retainer incorporates a 1/2-inch-thick steel wear surface at the contact point. The larger, more durable contact surface spreads the load from the oil pump arm and helps prevent it from continuing to wear into the transfer case housing.

Each retainer is TIG welded on all three forward-facing surfaces and individually clearanced for proper fitment on the BW1356 transfer case.

TRANSFER CASE FITMENT

• Borg Warner BW1356 / BW1356

COMMON VEHICLE APPLICATIONS

The BW1356 was used in a variety of 4x4 applications, including:

• Ford F-150 4x4
• Ford F-250 4x4
• Ford F-350 4x4
• Ford Full-Size Bronco 4x4

IMPORTANT FITMENT INFORMATION:
Vehicle year and model alone do not guarantee fitment. Please verify that your transfer case is a Borg Warner BW1356 before ordering.

WHAT YOU RECEIVE

• 1 custom BW1356 oil pump retainer / case saver
• 1/2-inch-thick steel wear surface
• TIG-welded construction
• Clearanced for BW1356 installation
• Ready to install
