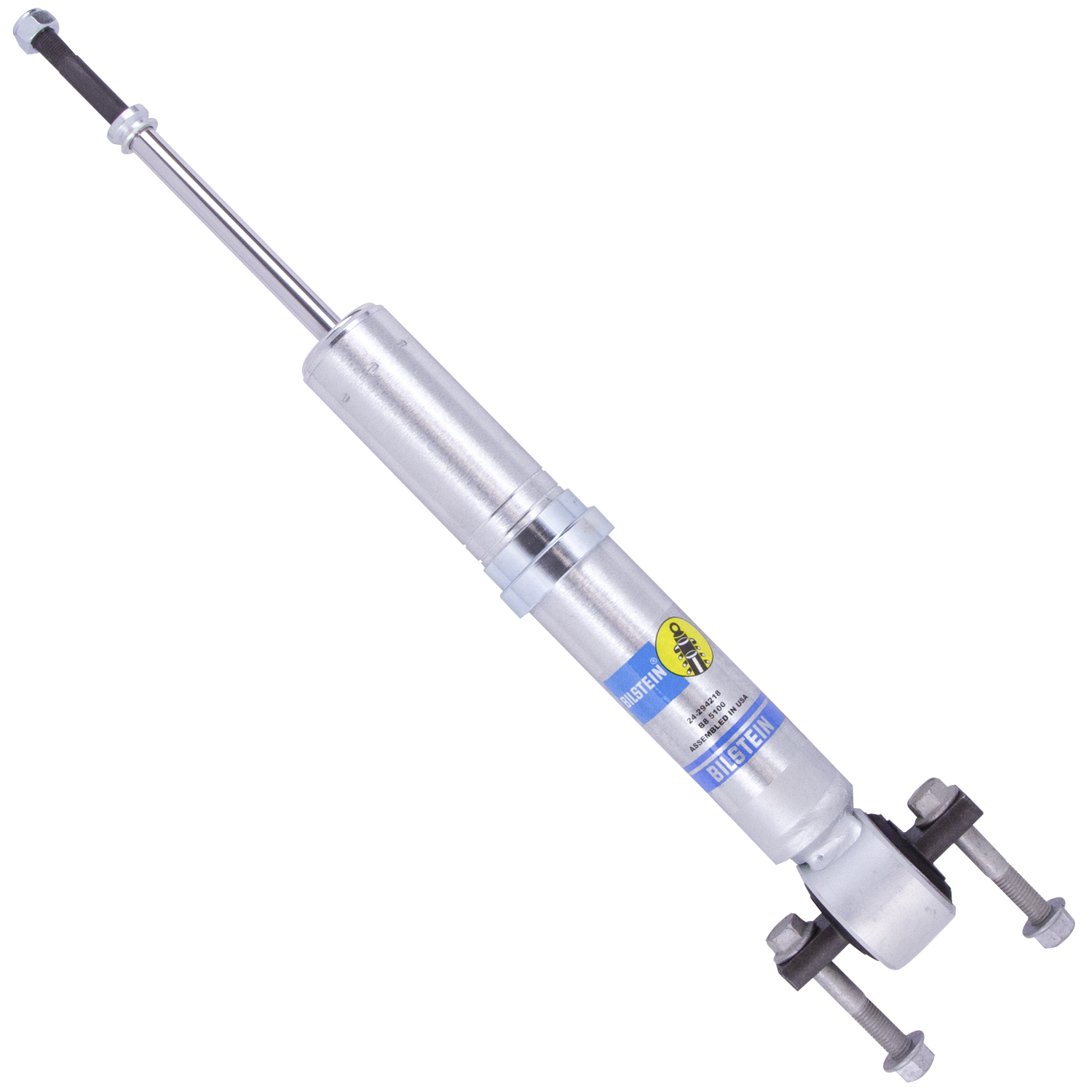

2019-23 Ford Ranger B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
- Provides 0-2.5" Front Lift
- Without Tremor Off-Road Package
- EACH, This is one individual shock
Product Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Specifications:
Collapsed Length (in) :14.59
Extended Length (in) :19.26
Collapsed Length (mm) :370.5
Extended Length (mm) :489.2
Stroke/travel Length (in) :4.67
Lower Mount Type :Crossbar
Upper Mount Type :Stem
Internal Design :Monotube
Finish :Zinc Plated
Reservoir :No
Body Design :Snap Ring Grooved Body (Coilover)
Body Diameter (od) :2.0 in.
Piston Diameter :46mm
Boot Included :No
Replacement Mounting Kit :B4-KT1-Z430A00
Spring Seat Included :No - Reuse OEM
Shaft Diameter :14mm
Adjustable Damping :Non-Adjustable
Details:
Applications :Y
Country of Origin :US
Quantity per Vehicle :2
UPC :00651860861562
Warranty :Limited Lifetime Warranty
Position :Front
Applications:
Ford Ranger 2019-2023 |
