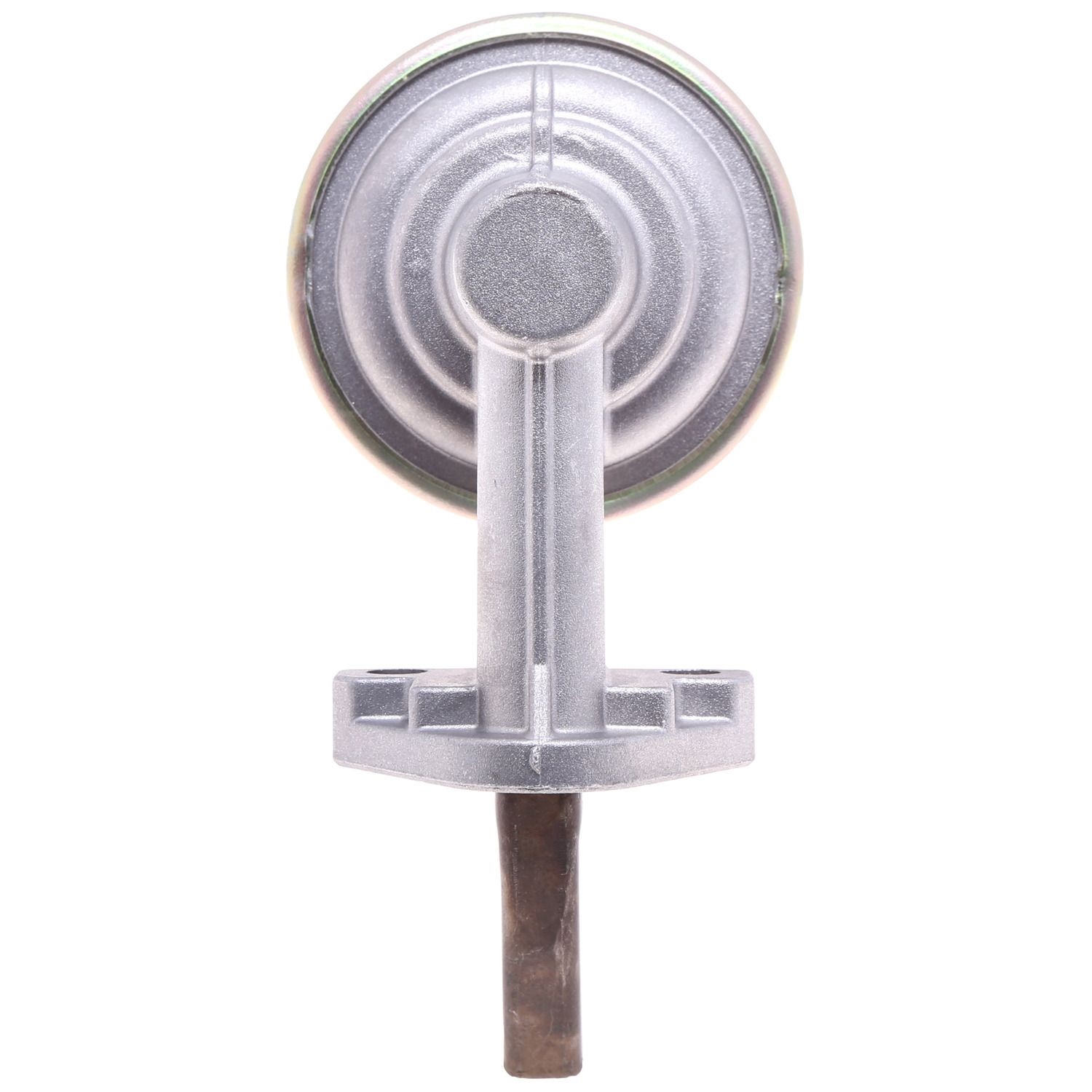

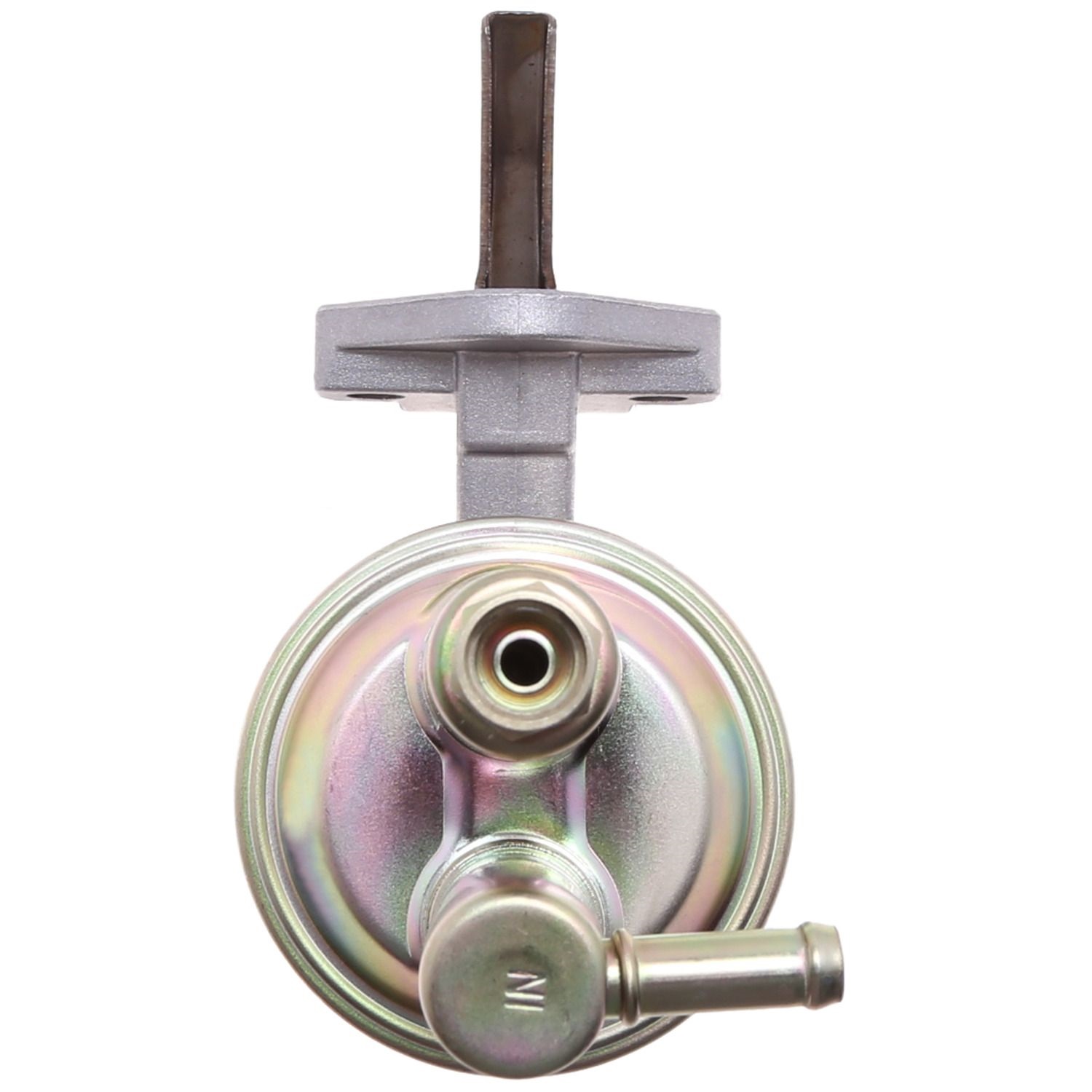

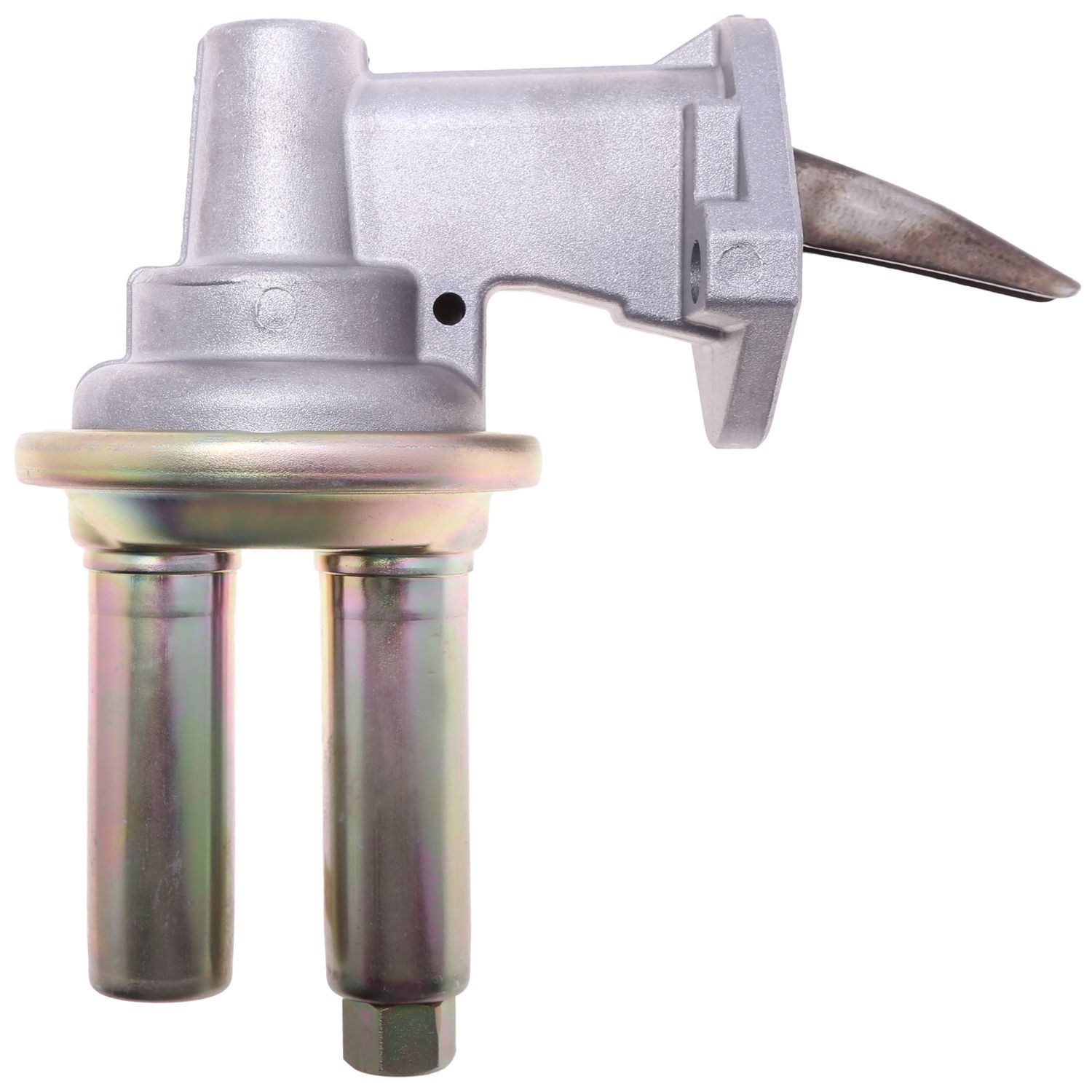

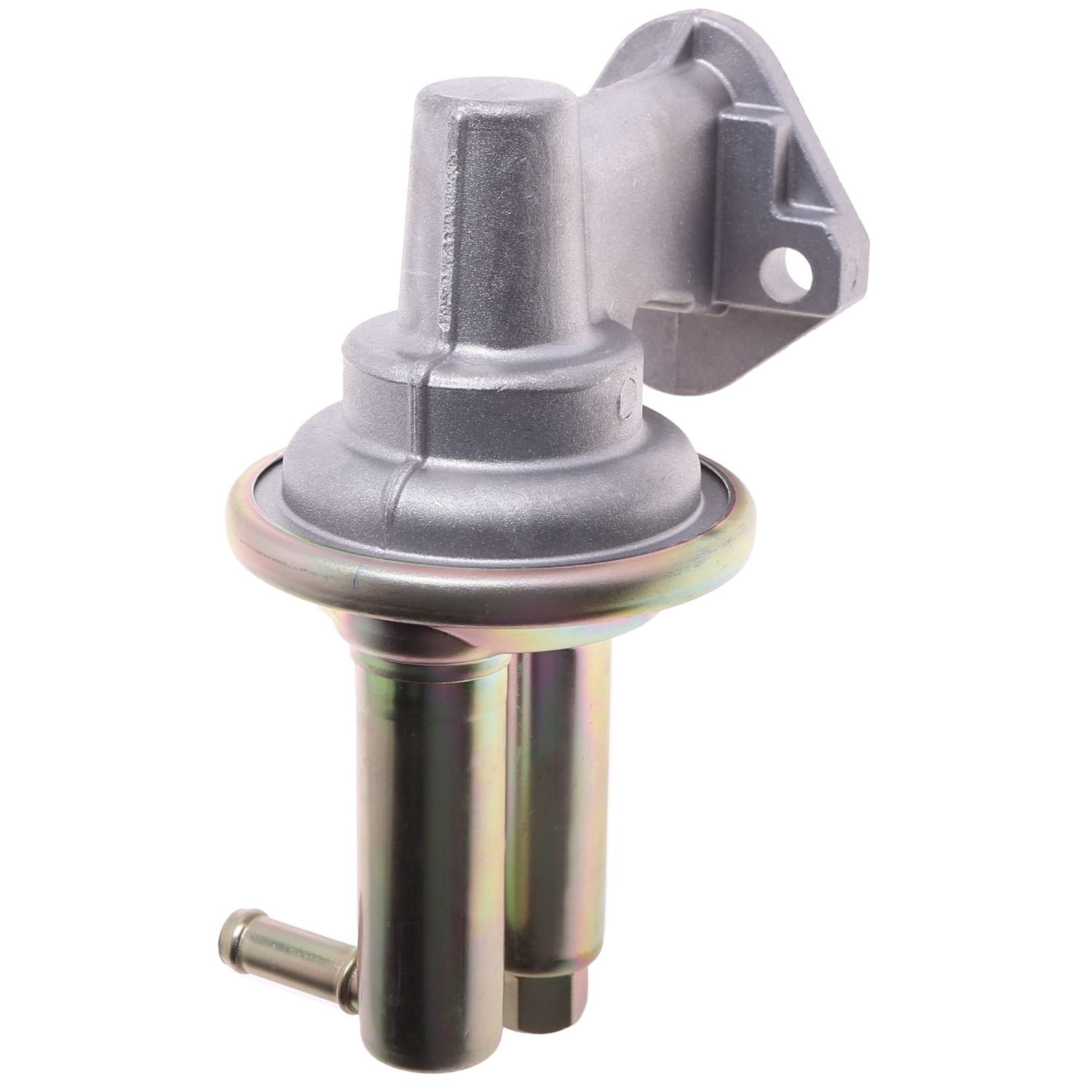

Mechanical Fuel Pump
The Carter Fuel Systems program features unique innovation and solutions by offering premium OE fit, form, and function as well as exceptional vehicle coverage and exclusive problem-solving features.
- Carter Fuel Systems Mechanical Fuel Pumps are designed to meet or exceed OE requirements, and many of these units have high capacity along with good vapor handling characteristics.
- Carter Mechanical Fuel Pumps feature precision castings and rockers help ensure a long life.
- Advanced polymer pump diaphragms help ensure consistent performance in multiple fuel blends.
- A new fuel filter is recommended when replacing pump.
Specifications:
Maximum Pressure: 5.5 PSI
Maximum Flow Rating: 24 gph
Inlet Outside Diameter: 9.5 MM, 0.37 IN
Gasket Or Seal Included: Yes
Inlet Type: Tube
Outlet Type: Threaded
Outlet Quantity: 1
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Housing Material: Aluminum
Outlet Fitting Thread Size: 1/2-20 UNF
Fuel Type: Gas
Minimum Pressure: 4 PSI
Pump Design: Mechanical
Minimum Flow Rating: 20 gph
Grade Type: Premium
Inlet Quantity: 1
Outlet Thread Size: 1/2-20 UNF
Outlet Fitting Thread Type Standard: UNF
Outlet Thread Type Standard: UNF
This product fits the following:
1973, 1974, Ford F100, F150, F250 2wd
1973 Ford F350
1973 Ford F100, F150, F250, F350 With Out In Cab Fuel Tank
240(3.9L) 300(4.9L) |
