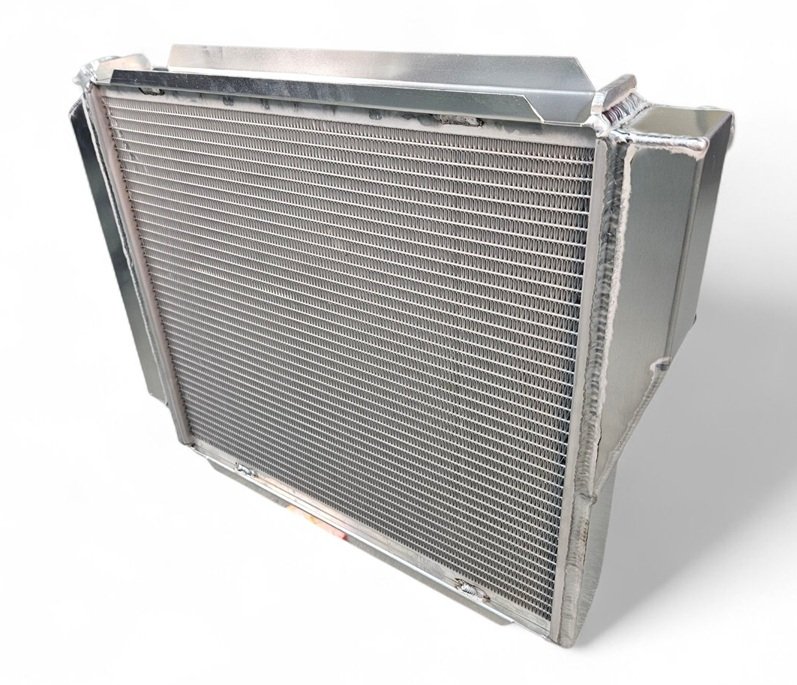

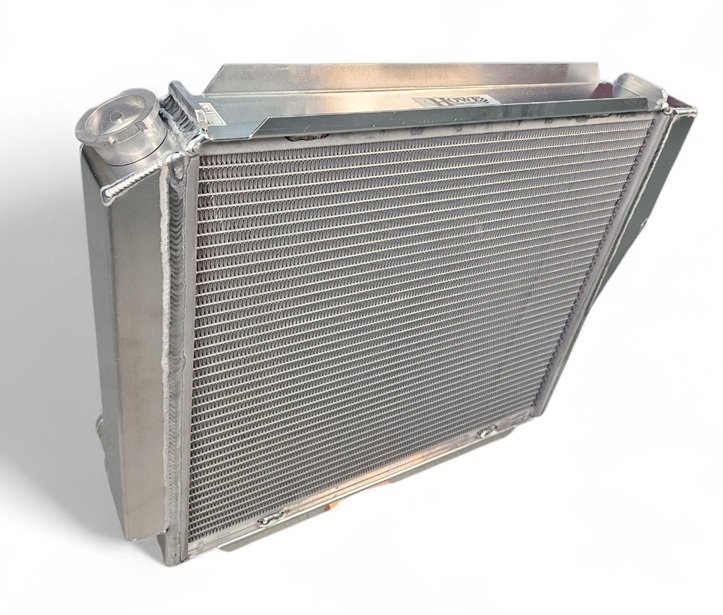

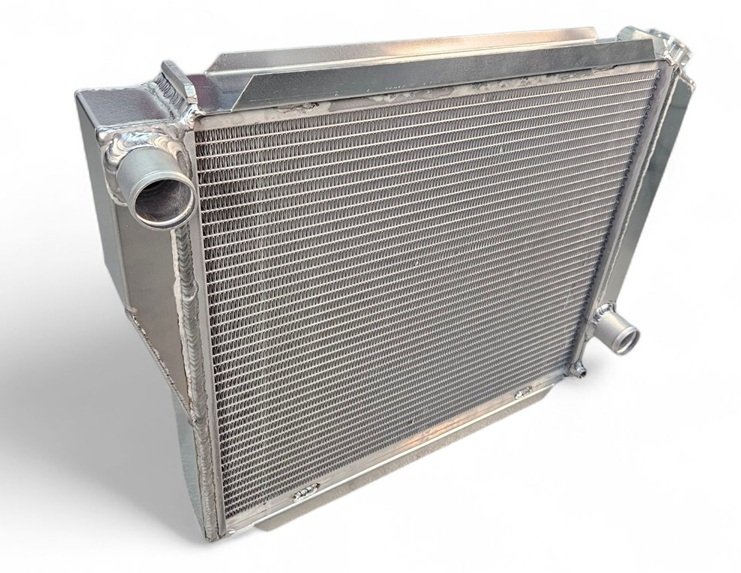

Solve all of your cooling problems with our new Extreme Duty Custom Aluminum Radiators for your small block V8. These radiators are made to fit in the factory location with the 10610 aluminum style radiator mounts. But these mounts will need to be slightly modified to fit the radiator.
These radiators provide over 15% better cooling than the 4 core high efficiency copper/brass radiators. With two 1" cores and 14 fins per. inch.
Better cooling is provided at low speed operating conditions, also the cores are brazed NOT epoxied to the tank headers allowing the use of a 22-24lb. radiator cap.

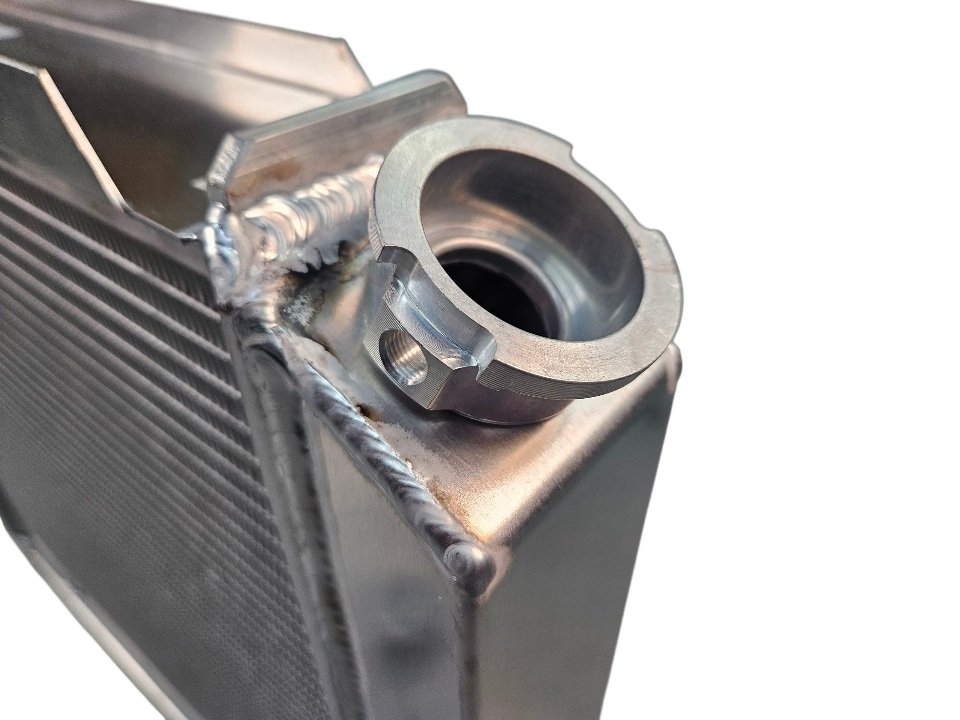

The tanks are custom made from 3003 aluminum and can have additional brackets attached with R4043 welding rod.
This radiator does accept the stock fan shroud and clears all known conventional power steering conversions steering conversions.
There is also a unit with a built in ATF cooler available.
Includes 22-24 lb cap.
24¾" Wide at it's widest point
20½" Tall at it's tallest point (flange to flange)

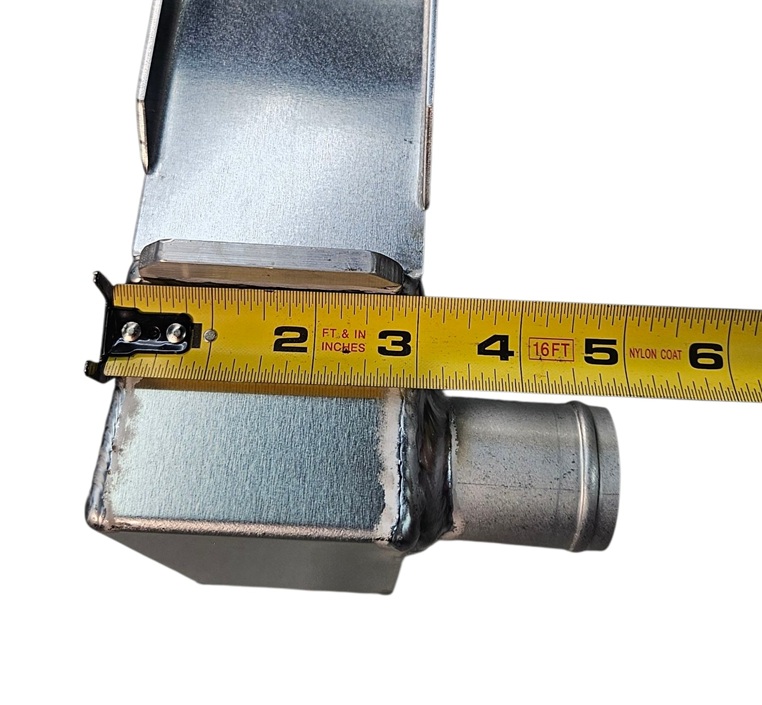

3" Thick at the flange(where the brackets would go)
Other recommended parts:
Fan shroud
Radiator hoses
Radiator mounts
Fan
Petcock
1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977 Ford Bronco
|
