2005-2016 4wd Ford Super Duty Bilstein B8 5100
- With 2" Front Lift
Product Description

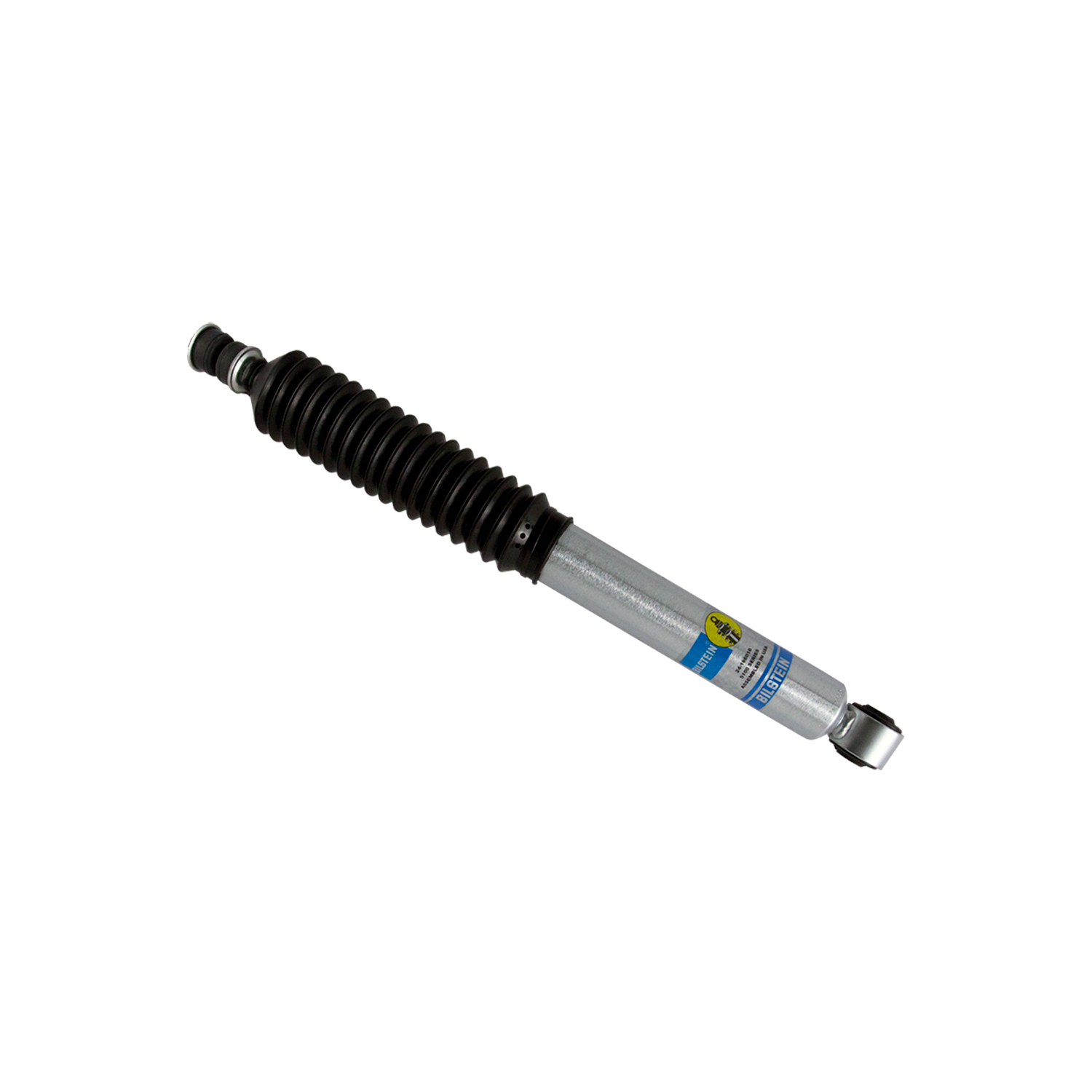

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
SPECIFICATION:
Collapsed Length (in) :13.59
Extended Length (in) :21.42
Collapsed Length (mm) :345.3
Extended Length (mm) :544.0
Stroke/travel Length (in) :7.83
Lower Mount Type :Eye 14.4mm
Upper Mount Type :Stem
Internal Design :Monotube
Finish :Zinc Plated
Reservoir :No
Body Design :Smooth Body (Non-Coilover)
Body Diameter (od) :2.0 in.
Piston Diameter :46mm
Boot Included :Black Bellows
Replacement Mounting Kit :B4-KT1-Z103A00
Spring Seat Included :No
Shaft Diameter :14mm
Adjustable Damping :Non-Adjustable
DETAILS:
Applications :Y
Country of Origin :MX
Quantity per Vehicle :2
UPC :00651860493190
Warranty :Limited Lifetime Warranty
Position :Front
This shock fits the following trucks
Ford F-250 Super Duty 2016-2005, F-350 Super Duty 2016-2005 |
