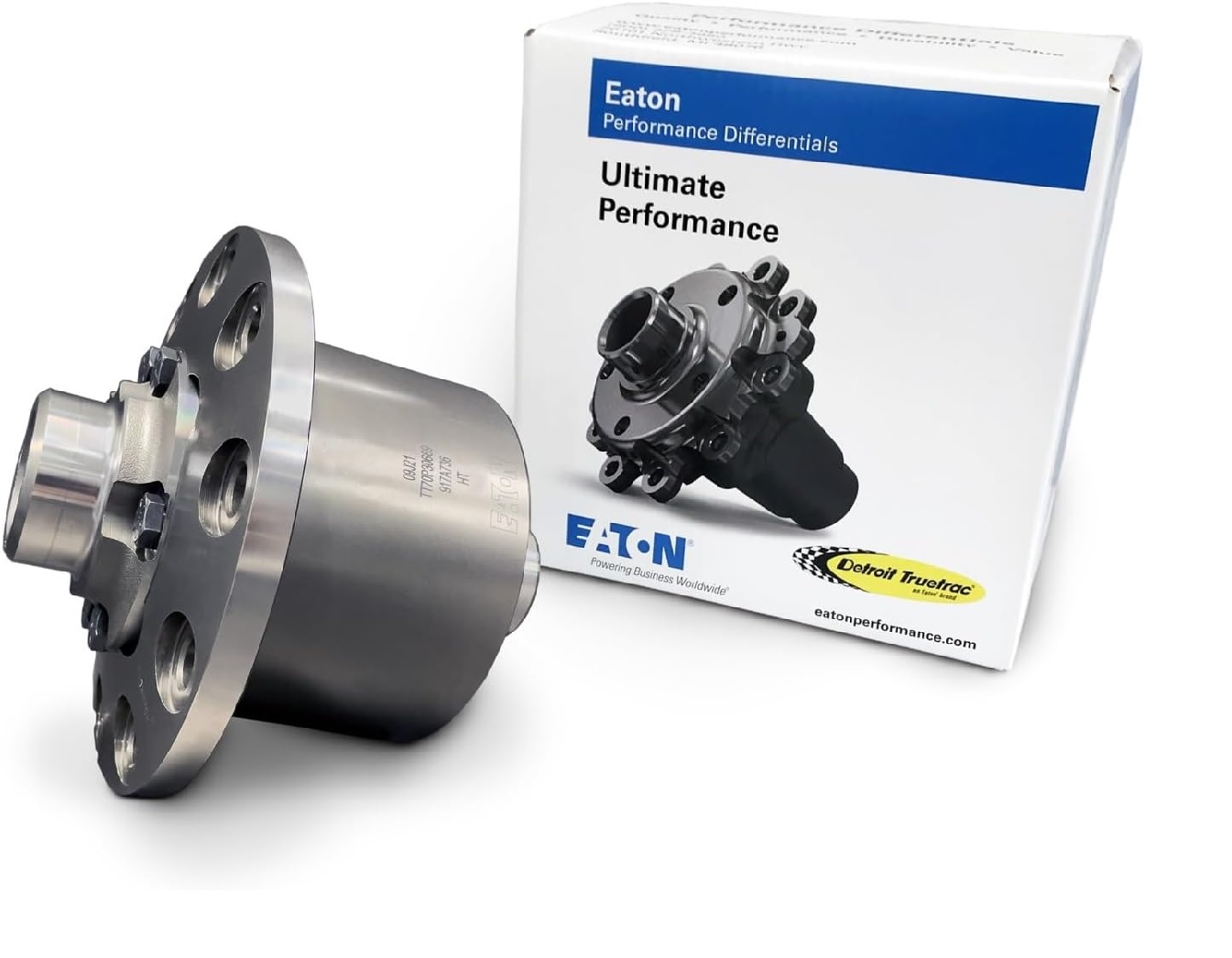

DETROIT TRUETRAC® DIFFERENTIAL
- Dana 44 (M220); 32 Spline; All Ratios
General specifications
- Product Name Eaton Detroit Truetrac Differential
- Catalog Number 917A736
- UPC 840379306279
- Product Weight 7 lb
- Catalog Notes Factory 3.73 gear equipped Ford Bronco's feature a welded ring gear/open differential and will require a replacement M220 JL ring & pinion to complete installation. JL/JT front installation requires aftermarket Front Axle Disconnect (FAD) removal / elimination kit.
- Product Type Differential
Features
- Smooth and automatic engagement - no driver action needed
- Maintenance free, more time on the road
- Helical-style side and pinion gears
- Limited-slip operation

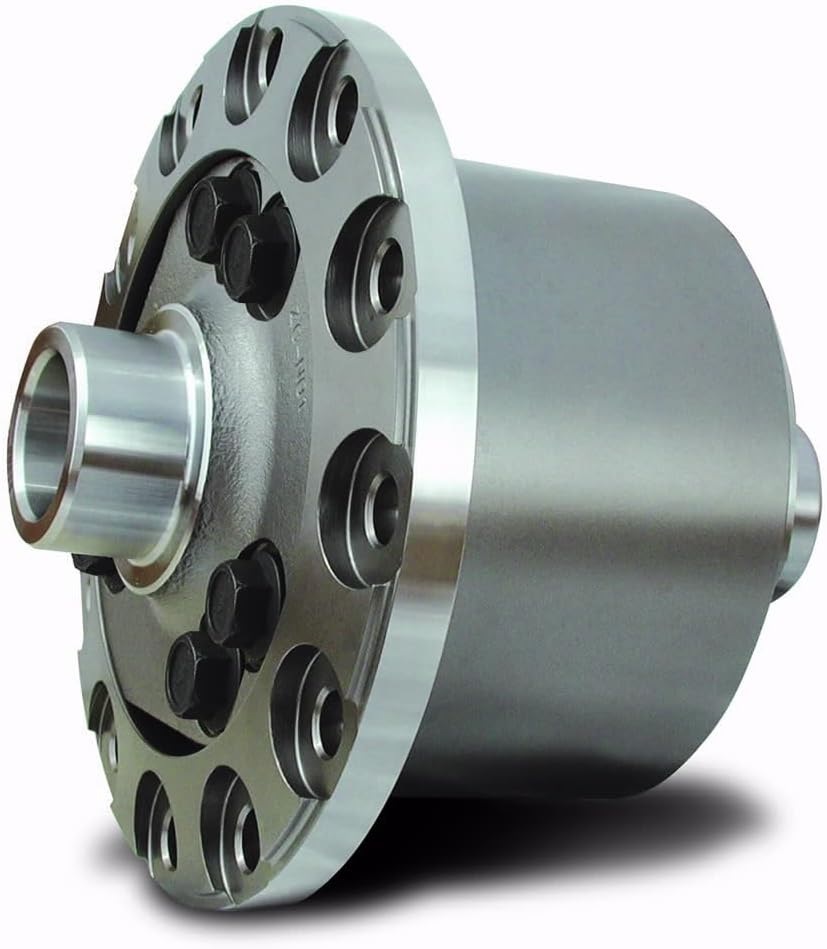

Detroit Truetrac®
The Detroit Truetrac is a helical-gear style limited-slip differential that maximizes wheel traction and enhances driving and handling characteristics.
Operation
The Truetrac operates as a standard (open) differential under normal driving conditions, allowing for unobtrusive operation.
When a wheel encounters a loss of traction or the terrain changes, the helical-shaped gears mesh with increasing force, transferring torque to the high traction wheel until wheel spin is slowed or completely stopped. When the vehicle exits the low traction situation, the differential seamlessly resumes normal operation.
Performance
Operation of the Truetrac is smooth, quiet and automatic. The unit will engage without any driver action required. It also has no wearable parts and requires no maintenance, meaning less time in the garage and more time on the road.
Lubrication
A quality petroleum GL5 rated (mineral) based oil is recommended. Synthetic oils may also be used if desired per axle manufacturer’s recommendations. Friction modifiers should not be used as they will decrease overall performance.
Fitment:
2021, 2022, 2023, 2024, 2025 Ford Bronco 4-Door w/ M220 rear axle
2021, 2022, 2023, 2024, 2025 Ford Bronco 2-Door w/ M220 rear axle
NOTE:
Welded Gears: Broncos equipped with 3.73 rear gears feature gears welded to the carrier, and you'll require replacement 3.73 ring-and-pinion gears for installation.
|
