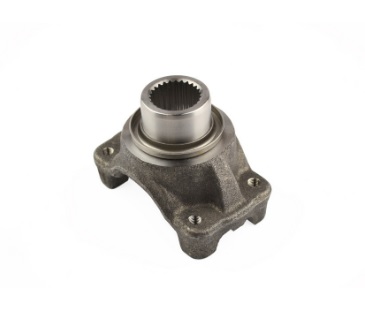

D44 Spicer 1350 Series Pinion Yoke Flange

Dana 44 Differential 1350 Series End Yoke

• 26 spline

• 1350 u-joint size

• Outside snap ring design

• 3.625" snap ring span

• 1.188" cap diameter

• Strap style

Description

Differential End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Brand Spicer
Series 1350
Spline Count 26
Hub Diameter R 1.550 inches
Major Diameter 1.146 inches
Length Thru Hole Q 1.500 inches
C/L To End Hub S 3.000 inches
Yoke Style Bearing Strap
Country of Origin USA
Gross Weight 2.34 LB
High Performance NO
Invoice END YOKE ASSY
Involute Spline YES
Material Steel
Outside Yoke Dimension (In) E 3.625 inches
Package Type EACH
Prop 65 No
Quantity 1
Type Splined Hole
Yoke Bearing Dimension (In) D 1.188 inches
