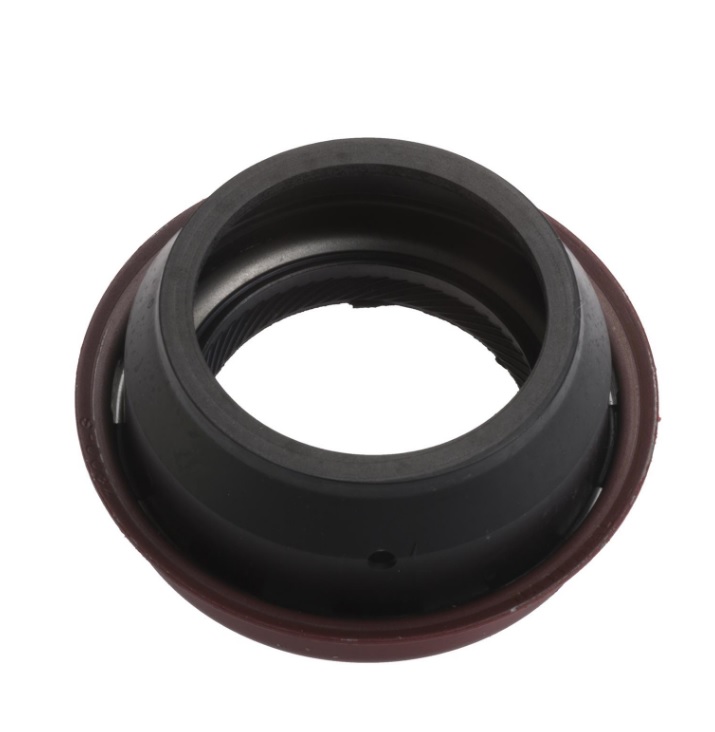

C6 & E4OD Transmission Rear Seal

C6 & E4OD Rear Output Seal

A premium, polyacrylate transmission rear seal or extension housing seal engineered for Ford trucks, including the F-150, F-250, and F-350. It is designed to prevent fluid from leaking out between the transmission output shaft and the extension housing while blocking harmful contaminants.

Specifications & Features

• Dimensions: 1.685 in (42.8 mm) inside diameter, 2.506 in (63.65 mm) outside diameter, and 0.421 in (10.693 mm) thickness.

• Material: Built using a durable polyacrylate compound that offers excellent resistance to extreme temperatures (-20°F to 300°F) and extreme pressure (EP) lubricants.

• Design: Spring-loaded dual-lip construction with a counter-clockwise spiral lip design for maximum sealing integrity
