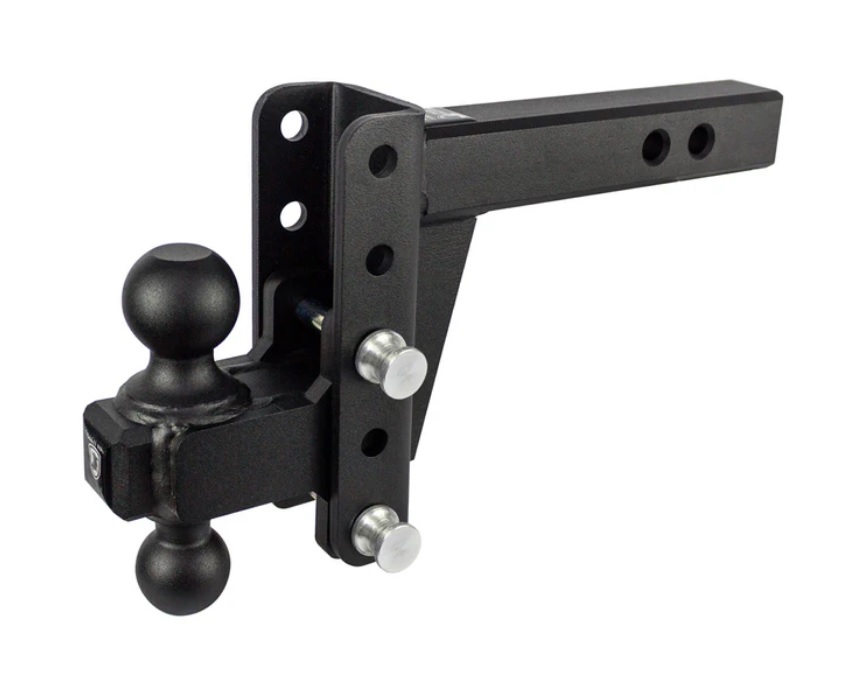

Bulletproof Hitches 2 inch Heavy Duty 4 Inch Drop/Rise Hitch
FEATURES
- 22,000 LBS Towing Capacity
- 3,000 LBS Tongue Weight Capacity
- Shank Sizes: 2”
PRODUCT DESCRIPTION
The Bulletproof 2.0" Heavy Duty 4" Drop or Rise Hitch is unlike any of their competitors' products. Bulletproof has worked hard to create 1 amazing Hitch that does the work of 10.
Their hitches are extensively tested and exceed SAE-J684 testing requirements. They are built to such a high standard that they have never had a single failure. You can see why from the features listed below:
Class 4 Hitch with a 22,000 lb Max Towing Capacity & 3,000 lb Tongue Weight Capacity.
3 Ride Heights that are Easily Adjustable.
The 2.0" Heavy Duty 4" Drop/Rise Hitch Weighs 38 Pounds.
*PATENT PENDING

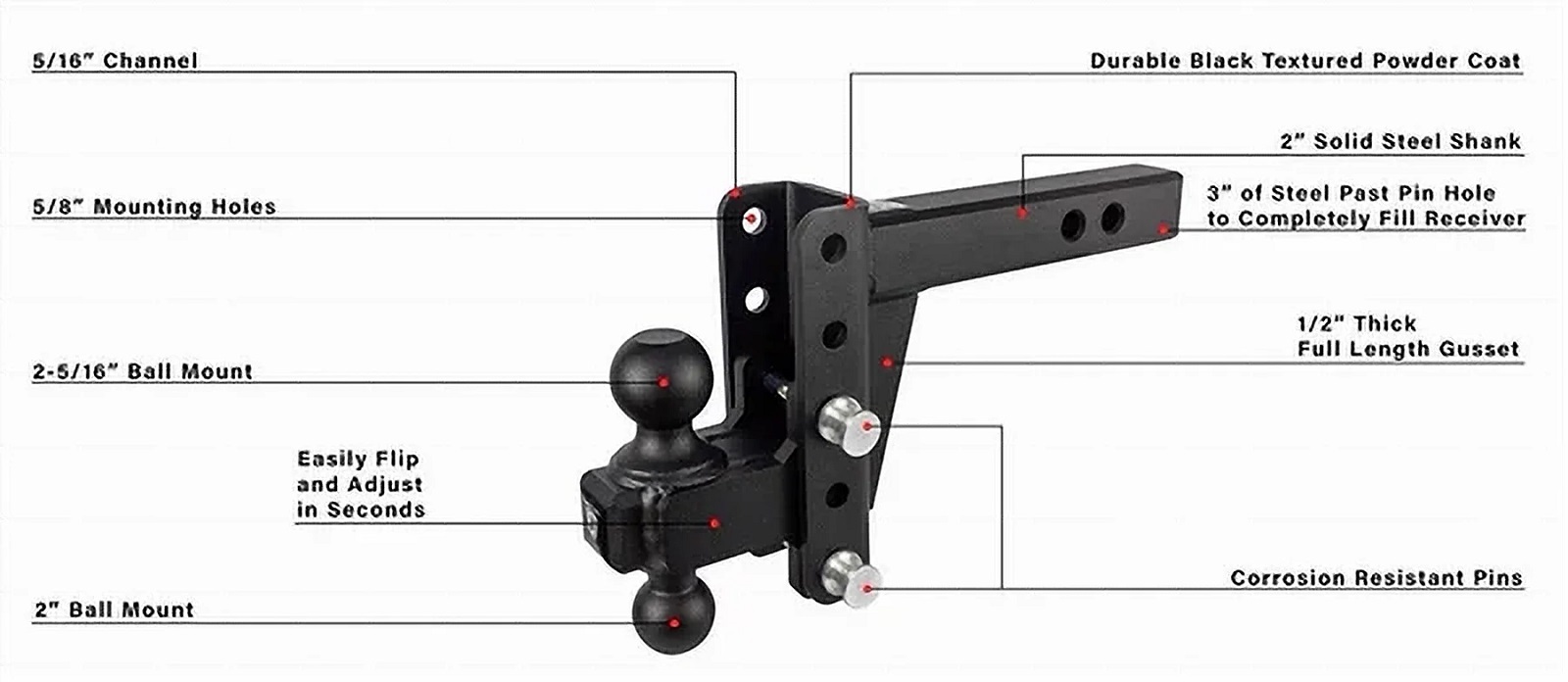

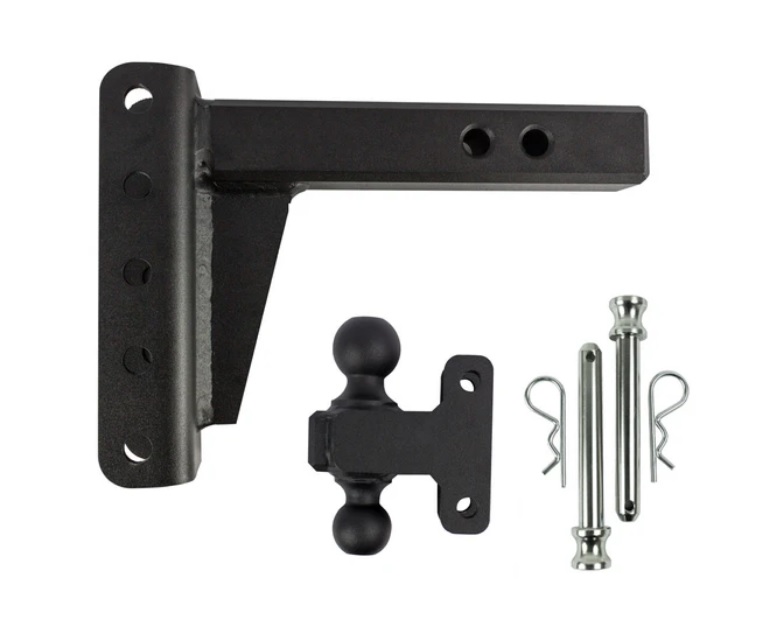

PARTS INCLUDED
- 2" Solid Steel Shank
- 2 × 5/8" Corrosion Resistant Pins
- 2 × R-Clips
- 2" & 2-5/16" Ball Mount
SOLID STEEL SHANK
The Heavy Duty hitch shanks are solid steel all the way through and have chamfered edges so that they can easily slide into & out of your hitch receiver. The solid steel shank also comes with two pin holes on the shank for more adjustment options.
The textured powder-coated finish creates a durable surface to help protect your hitch.
HEAVY DUTY BALL MOUNT
Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.
Heavy Duty Dual Ball Weight Ratings:
2" Ball: 12,000 lb Rating
2-5/16" Ball: 22,000 lb Rating
SIGNATURE BLACK TEXTURED POWDER COAT
All BulletProof Hitches® feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.
CNC MACHINING
The components of the BulletProof Hitch® are machined on state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.
USING BULLETPROOF HITCHES IN THE RISE POSITION
All of the Bulletproof hitches can be used in the drop or rise position and maintain the same weight capacity in either position.
This 2.0" Heavy Duty 4" Drop/Rise Hitch has a max towing capacity of:
22,000 LBS and a tongue weight capacity of 3,000 LBS in both the drop & rise positions.
|
