Bronco II & Ranger D28 Adjustable Alignment Bushings - PAIR

Bronco II & Ranger D28 Adjustable Alignment Bushings - PAIR
Images/8algmntbshng.jpg
Item Number: 93530
  Be the first to review this item
Unit Price: $49.00
In Stock
Quantity
NEW
1984-88 Ford Bronco II 4wd
1983-88 Ford Ranger 4wd
Dana 28 Pair Made in the USA
~
 Detailed Description
The factory camber bushings, located above the upper ball joints, alter camber by changing the ball joint stud angle.
Your local Ford dealer or alignment shop offers these bushings for most vehicles in set increments of correction up to 2 degrees of change.
Adjustable camber/caster bushings offer a greater adjustment range than stock, and are normally needed with 1" to 2" lift coils.
With most trucks, if the full degree of correction is not needed for camber, the remainder can be rotated into caster.

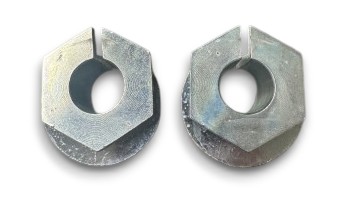

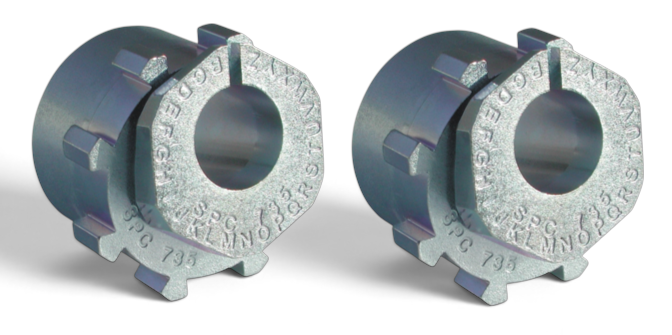

These are the adjustable camber/caster bushings for Ford IFS Dana 28 front axle.
These come as a pair, you need 1 individual bushing per side.
They will adjust up to 2 3/4 degrees.

Height: 39.5 mm
Inside Diameter: 16.65 mm
Material: Steel
Outside Diameter: 36.6 mm
Package Contents: Alignment Sleeve Assembly
