Stage 1 Dana 50 TTB Front Leaf Spring Delete Kit / F250 & F350
We’ve created this Dana 50 TTB Front Leaf Spring Delete Kit for those of you that are tired of the rough ride associated with the front leaf springs of your Dana 50 TTB equipped 4×4 Ford F-Series Pickup.
Description
We’ve created this Dana 50 TTB Front Leaf Spring Delete Kit for those of you that are tired of the rough ride associated with the front leaf springs of your Dana 50 TTB equipped 4×4 Ford F-Series Pickup.

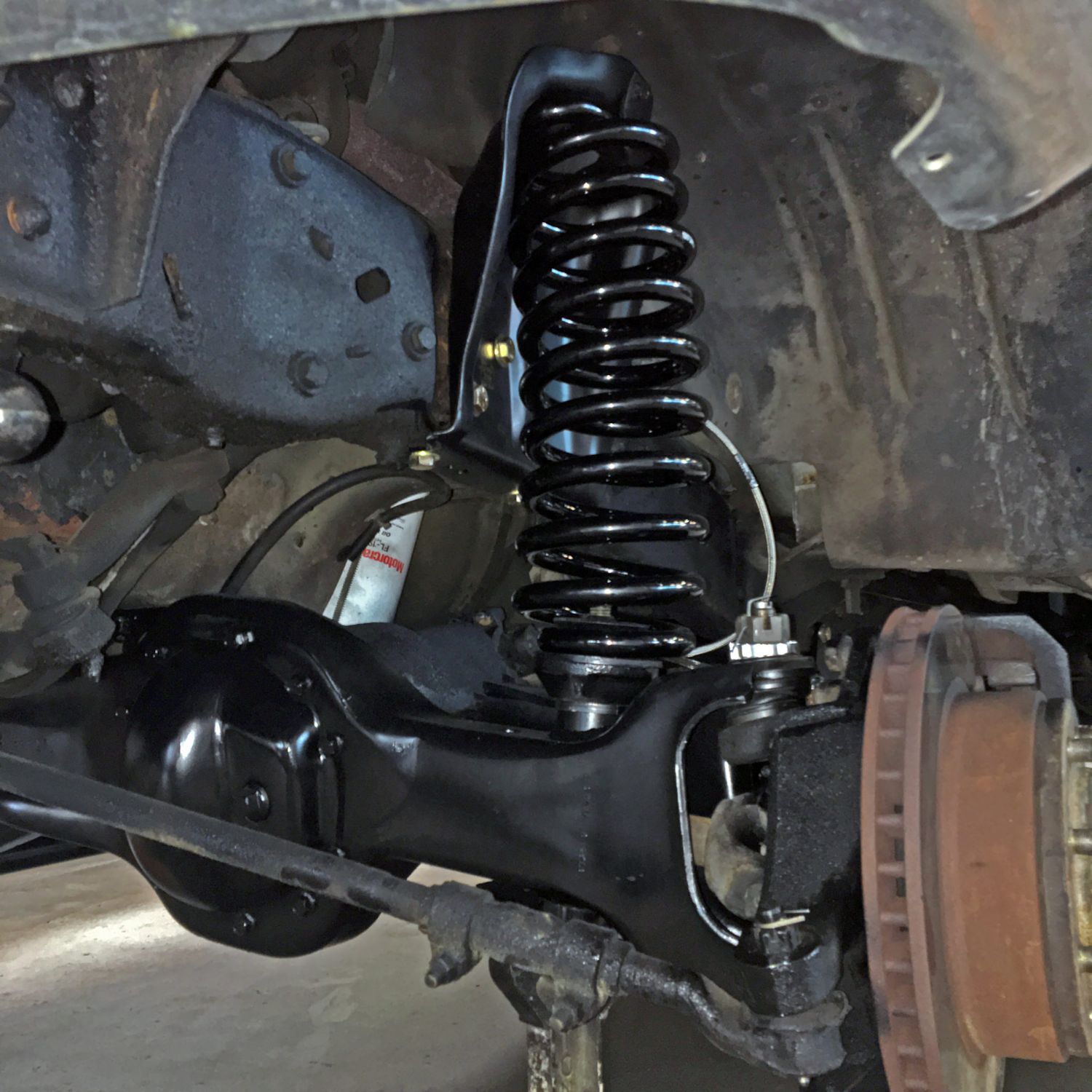

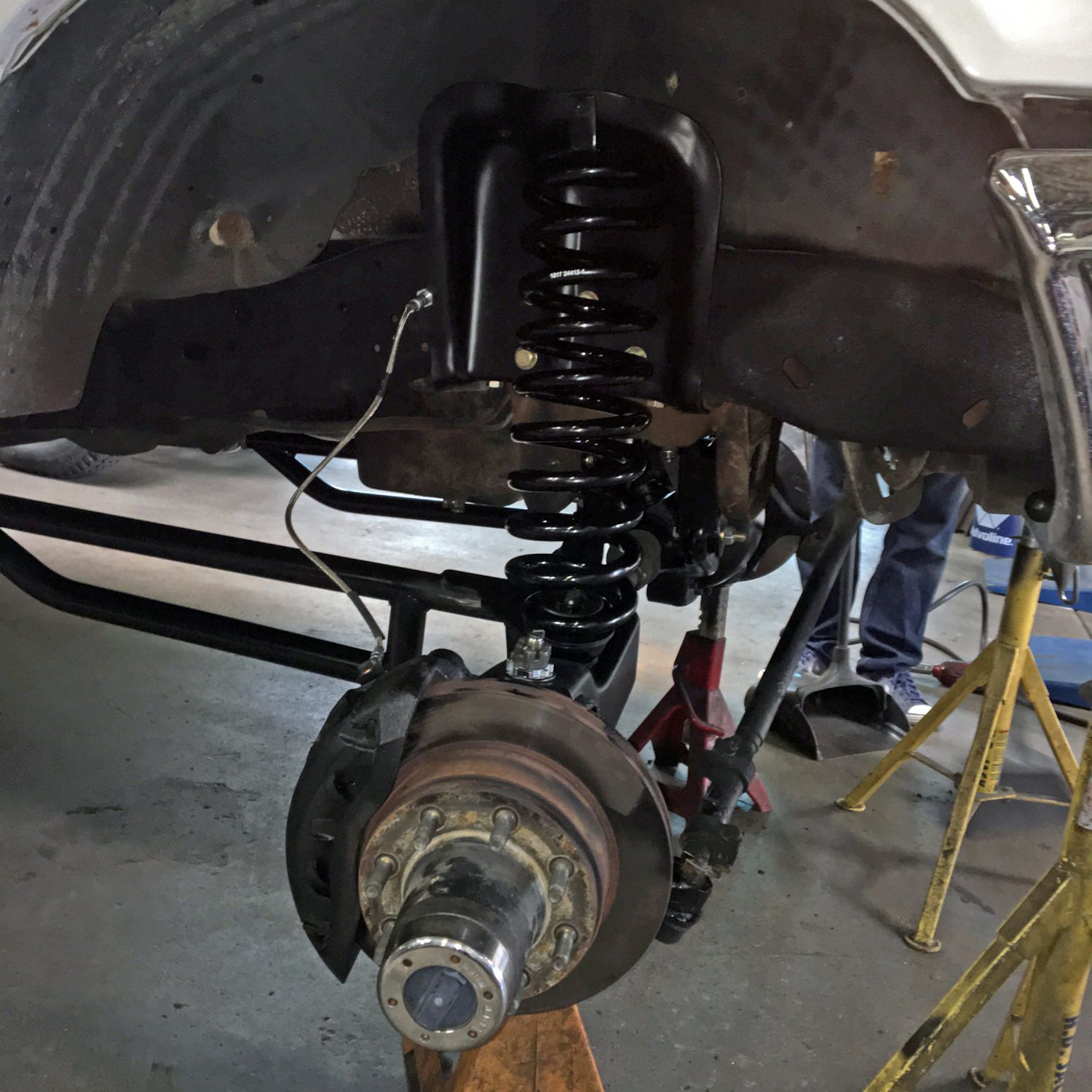

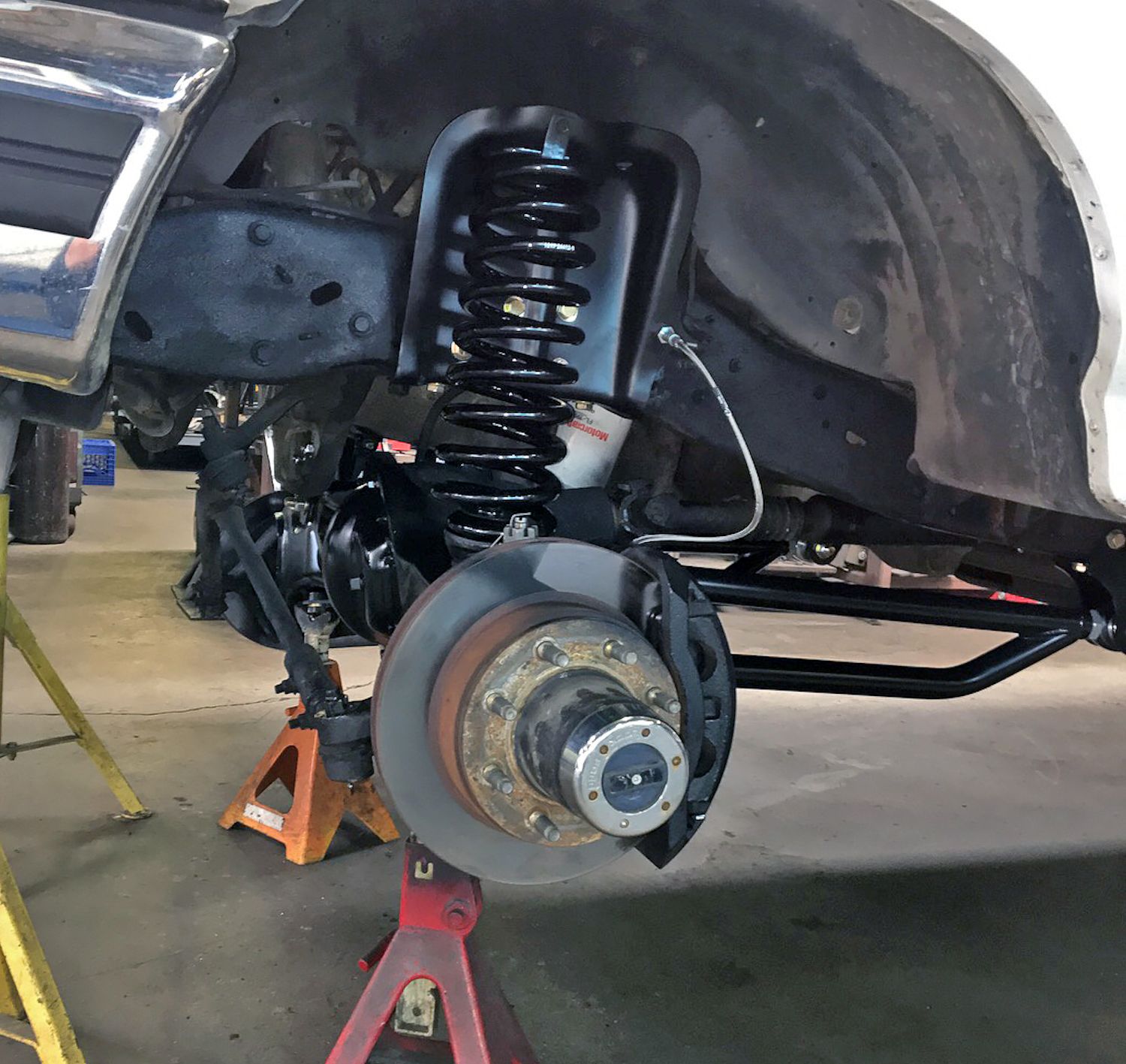

We start by modifying a pair of Dana 50 TTBs to accept our Extended Heimed Radius Arms. This allows you to get rid of those factory front leaf springs that are causing the rough ride.
The basic 3” to 4” coil spring lift is 100% bolt-on and offers a great ride over stock.
Specs
- Lift 3in to 4in, depending on engine and body configuration (diesel / gas engine; standard / extra / crew cab)
- 100% Bolt-on
- Driveshaft modification required: No
Application
- The Dana 50 Twin Traction Beam (TTB) was used in the Ford F-250 from 1980 to 1997.
- The TTB Dana 50 was used in some F-350s from 1980 to 1986, but most F-350s will have a straight axle, which is not compatible with this kit.

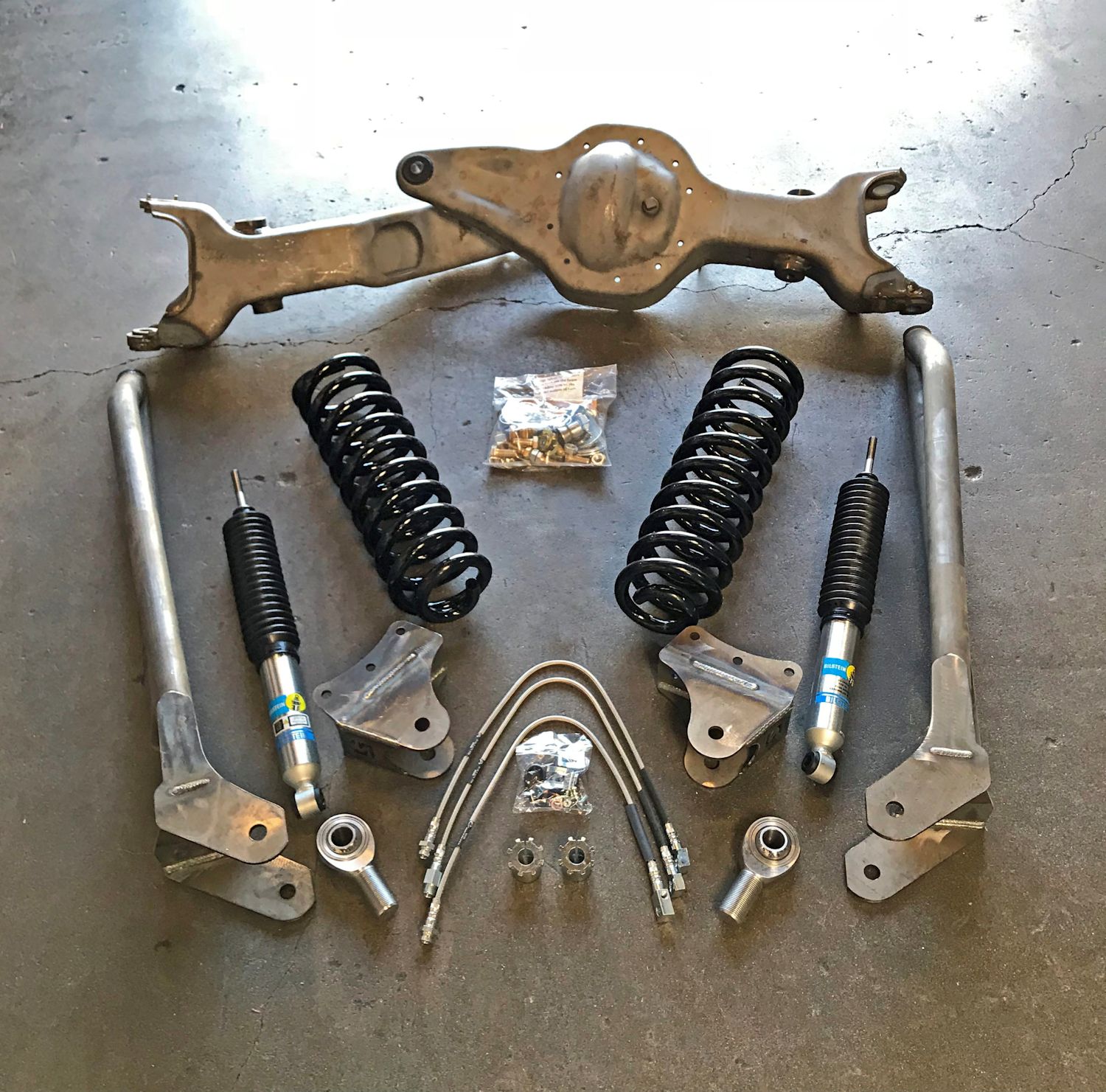

Kit Includes
- Dana 50 TTB Cut N’ Turned and Modified to accept Radius Arm ($350 core charge included in price – read more)
- 1.25" Heimed Extended Radius Arms with Pivot Brackets and Hardware
- Coil Buckets
- 4" Coils
- Bilstein 5100 Front Shocks (1 pr)
- Alignment Cams
- 3-Piece Extended Brake Line Kit
TTB Cores
Core charge will be refunded to customer when Solo Motorsports receives your acceptable cores.
TTB Cores must be in good condition and free of excessive rust.
If you’re not sure about the condition of your beams, send an email to Jeff's Bronco Graveyard or Solo Motorsports.
Please note that received beams may be rejected due to a poor and unworkable condition. Additional shipping charges incur if returned to sender at sender’s request.
Sorry, they've received too many bad beams.
Core charge on TTBs: $350
|
