Spicer® Performance Driveshaft for the Ford® Bronco®
10121259 Drive Shaft
4 Door Bronco Driveshaft 4x4
Description

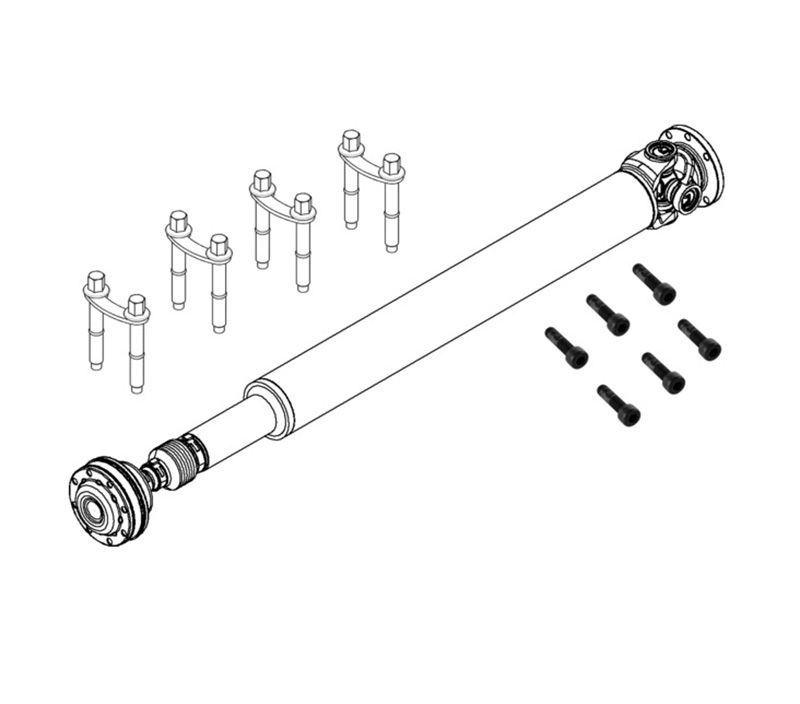

Drive Shaft, Kit, Bronco Performance 4X4 4 Door (Short Wheel Base)
Improved Strength and Performance for the Ford Bronco
Engineered for hard-core off-roading, Spicer® driveshafts are built from high-quality steel to deliver the ruggedness and durability you demand from your Ford Bronco. Find out how Spicer innovations can inspire Bronco owners to push the boundaries for years to come.
1350 Series Spicer Driveshafts Features and Benefits:
- Engineered with a smaller diameter for improved clearance to the exhaust
- Include a direct-fit bolt-in flange
- Provide ease of installation and a better off-road experience
- Optimized for 0"- 6" lifts
- Deliver strength that can exceed even original equipment
- Maintenance-free SPL® 1350 Series double cardan
- High performance SPL 1350 series u-joint
- Non-greaseable lubed-for-life double cardan centering package
- Improved lube retention and resistance to contaminants
- No loss of operating angle potential
- High-strength, thicker tubing
- Smaller diameter 2×0.120 DOM front shafts allow for improved clearance
- 3×0.083 DOM rear shafts ensure no critical speed issues
- Slip member
- Front shafts feature strong 1.375" spline with a re-lube zerk in the seal
- Rear shafts feature 1.5" spline with a re-lube zerk in the slip yoke
- Lubed-for-life high performance SPL 1350 series u-joint at end of each slip yoke
Note: To ensure the proper fitment, it is best to measure your application after any axle and lift installation.
All genuine Spicer driveshafts include a Spicer transfer case yoke and hardware for easy installation.
Brand Spicer
Series 1350
Shaft Material Steel
Invoice Drive Shaft
Tube Size (MM) 76.2000 x 2.1000
Max Slip (MM) 58.3000
Tube Size (IN) 3.0000 x 0.0830
Max Slip (IN) 2.2953
Tube Length (MM) 976.0000
FF(Flange Face) To FF (MM)-COLL 1375.5000
FF(Flange Face) To FF (IN)-COLL 54.15350
VMRS 024000000
Phased (Yes/No) No
FF(Flange Face) To FF (MM)-INST 1415.5000
FF(Flange Face) To FF (IN)-INST 55.7283
Joint Angle 25
Unwelded/Welded Assembly Welded
Universal Joints Included Yes
No. of Universal Joint Included 1
CV Joints Included Yes
Package Type EACH
Package Qty 1
Weight 26.41 LB
Country of Origin United States
|
