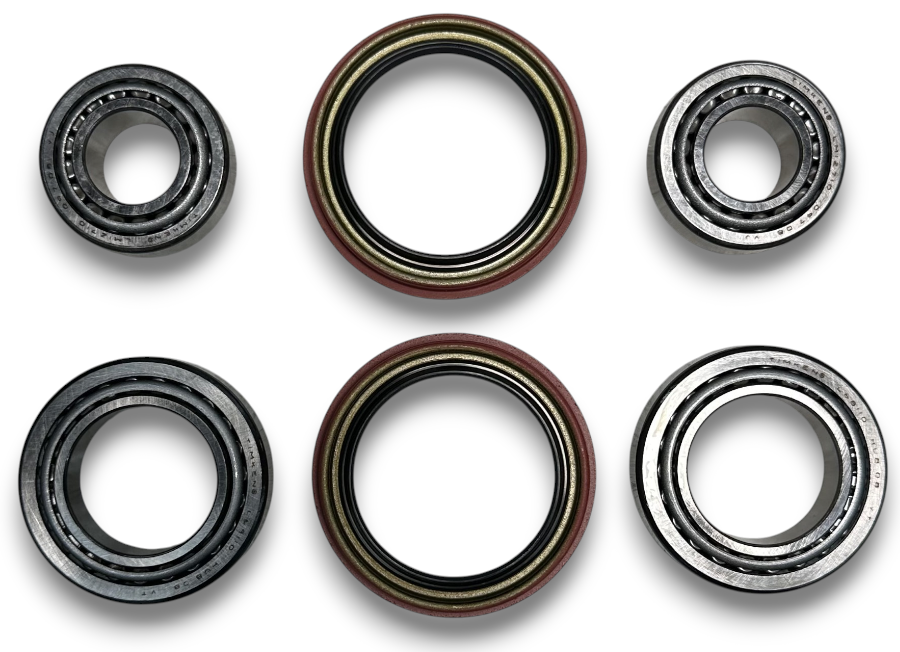

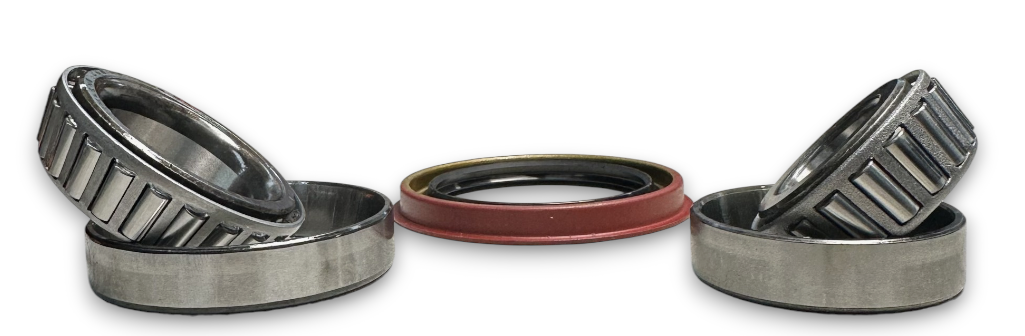

Two Wheel Drive Front Axle Wheel Bearing and Seal Kit
- 2 Timken outer wheel bearings and races
- 2 Timken inner wheel bearings and races
- 2 hub seals
Inner Wheel Bearing & Race Dimensions:
Bore Diameter (Inner ID): 1.3775 in (34.99 mm)
Outside Diameter (Outer OD): 2.3280 in (59.13 mm)
Overall Width (Total T): 0.6250 in (15.88 mm)
Cone Width: 0.6600 in (16.76 mm)
Cup Width: 0.4700 in (12.07 mm)
Weight: ~0.35 lbs (0.17 kg)
Outer Wheel Bearing & Race Dimensions:
Bore (Inside Diameter / d): 0.8656 in (21.987 mm)
Outside Diameter (OD / D): 1.7810 in (45.237 mm)
Total Width (T): 0.6100 in (15.494 mm)
Cone Width (B): 0.6550 in
Cup Width (C): 0.4750 in
Seal Dimensions:
Shaft Diameter (Inside Diameter): 2.000 inches / 50.800 mm
Outside Diameter: 2.627 inches / 66.726 mm
Overall Width (Thickness): 0.280 inches / 7.112 mm
Flanged Outside Diameter: 2.865 inches / 72.771 mm
Housing Bore: 2.623 inches / 66.624 mm
Design Type: 286 (Springless, multi-lip configuration optimized for grease retention)
Material: Nitrile Rubber (NBR)
Fits the following trucks:
1975-79 Ford F100 2wd
1976-79 Ford F150 2wd
1975-79 Ford F250 2wd with standard duty single piston caliper brakes only
|
