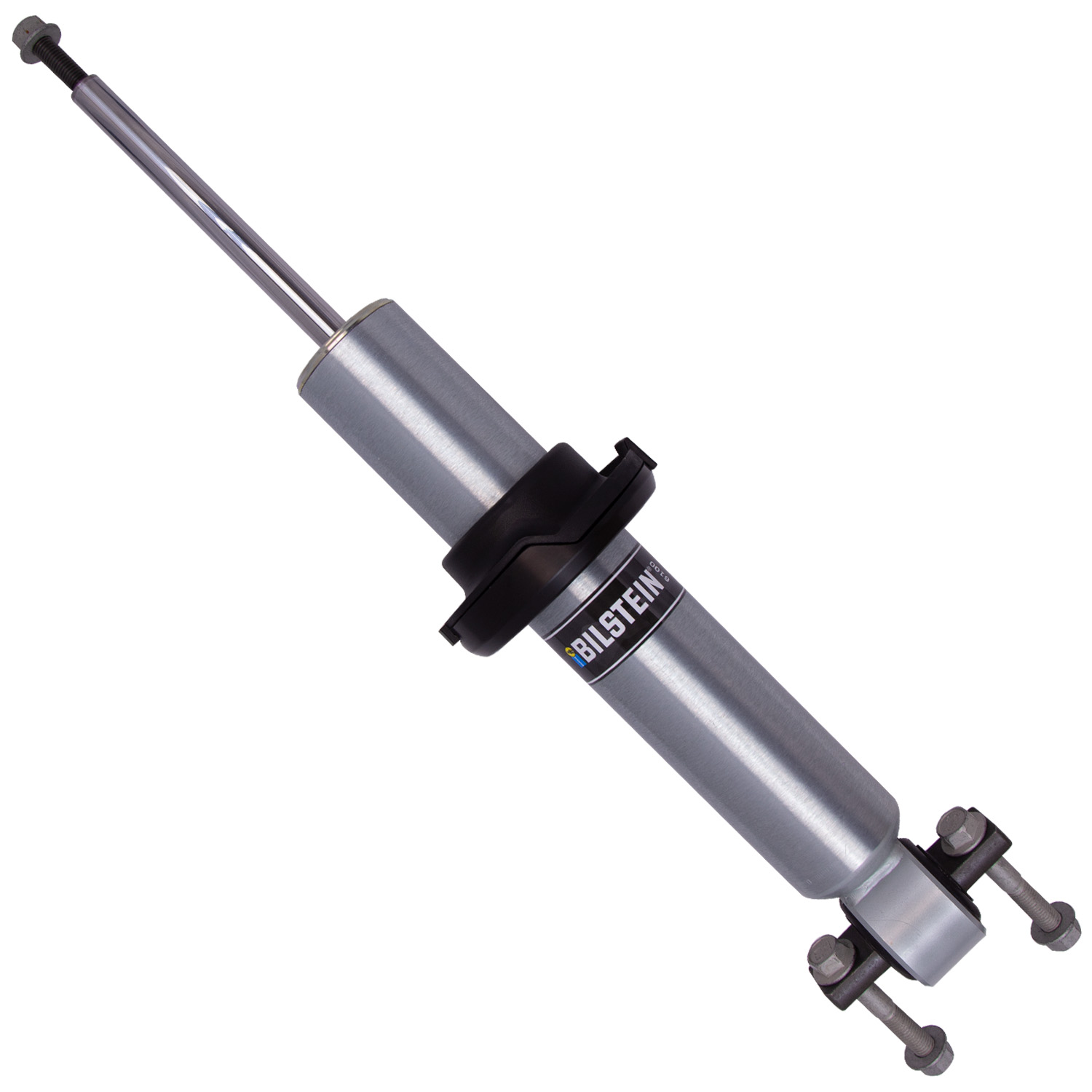

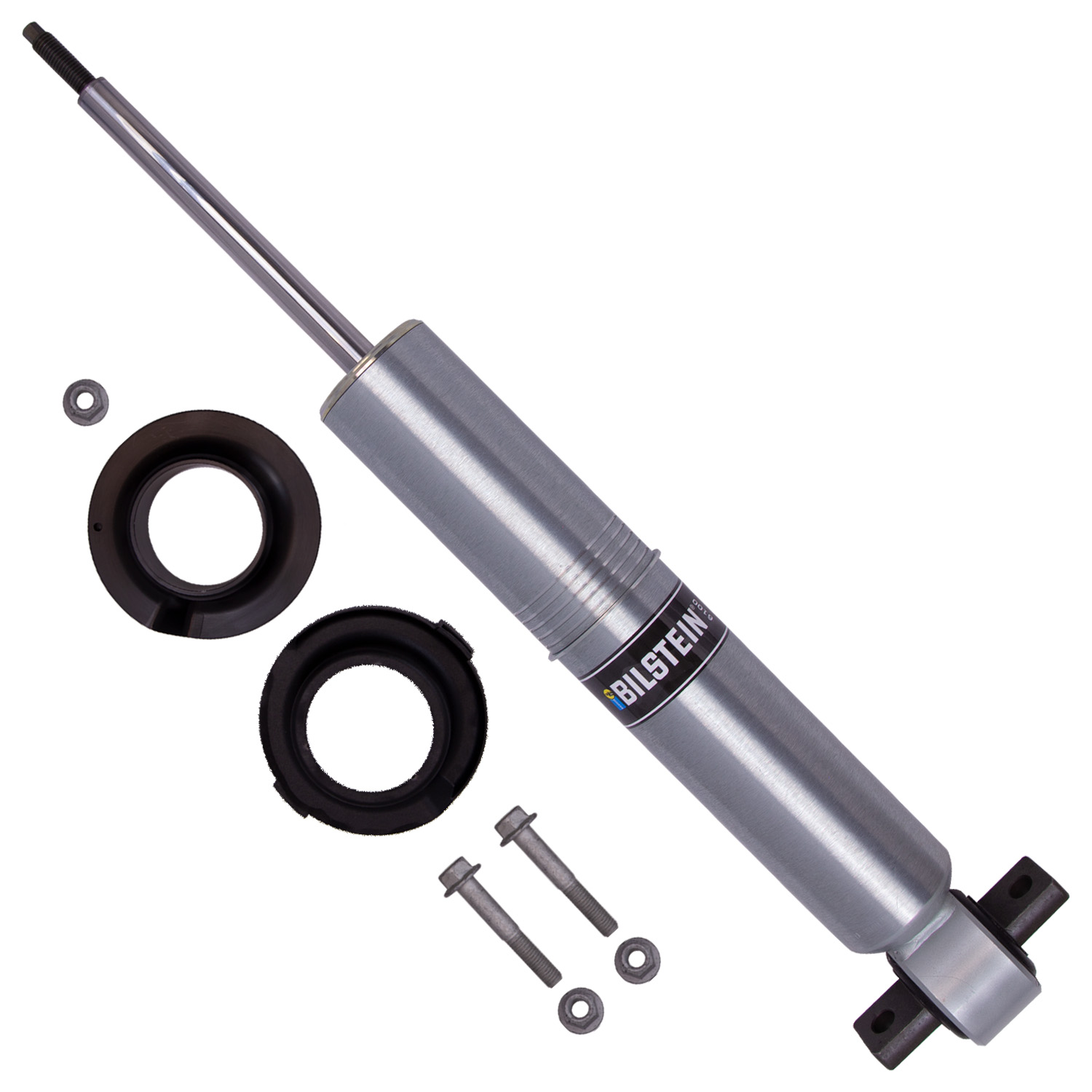

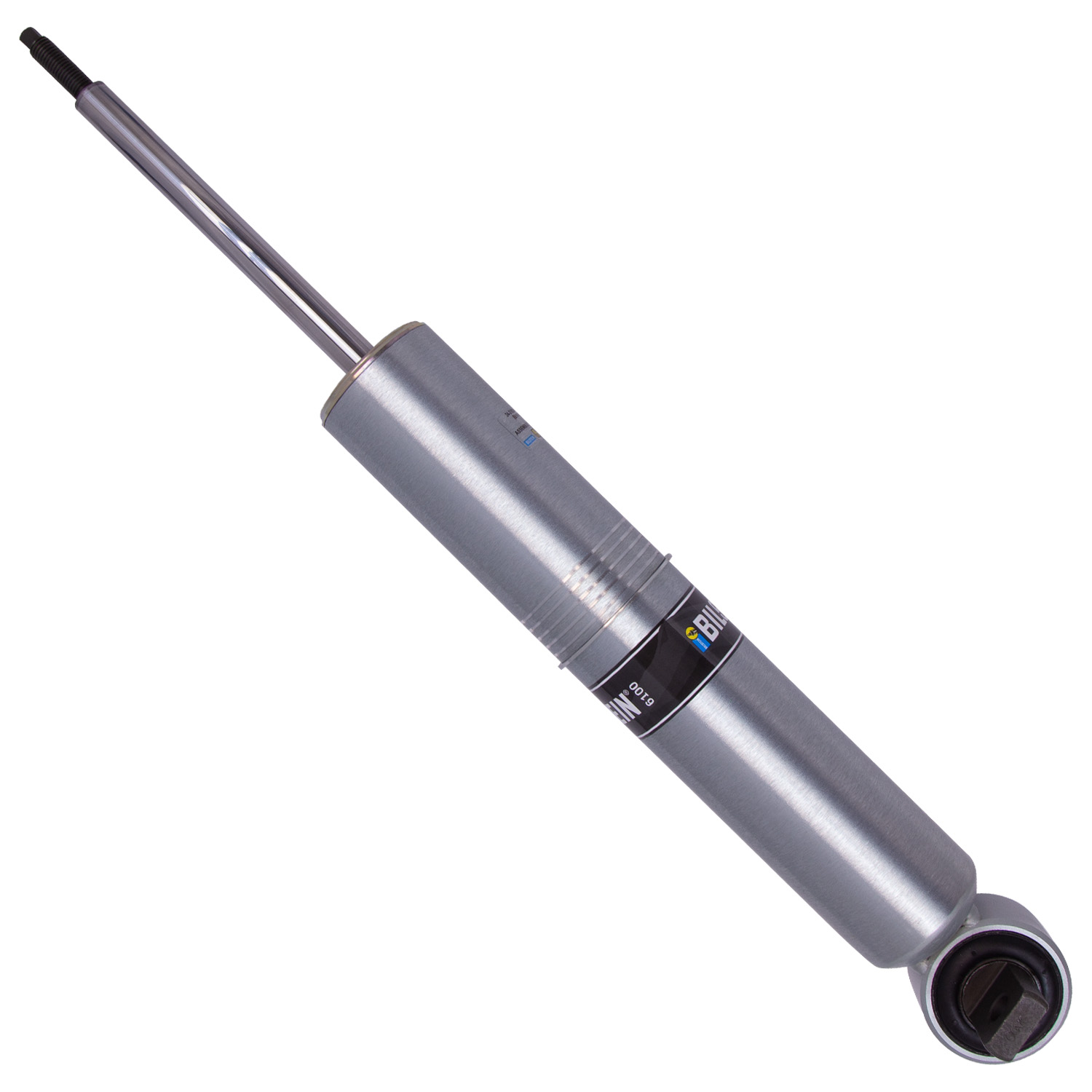

B8 6100 (Ride Height Adjustable) - Suspension Front Shock Absorber (1)
- Provides 0-1.6" Front Lift
- With Sasquatch Package ONLY
Product Description
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Specifications:
- Collapsed Length (in) :16.62
- Extended Length (in) :22.80
- Collapsed Length (mm) :422.2
- Extended Length (mm) :579.2
- Stroke/travel Length (in) :6.18
- Lower Mount Type :Crossbar
- Upper Mount Type :Stem
- Internal Design :Monotube
- Finish :Zinc Plated
- Reservoir :No
- Body Design :Snap Ring Grooved Body (Coilover)
- Body Diameter (od) :2.65 in.
- Piston Diameter :60mm
- Boot Included :No
- Replacement Mounting Kit :B4-KT1-Z471A00

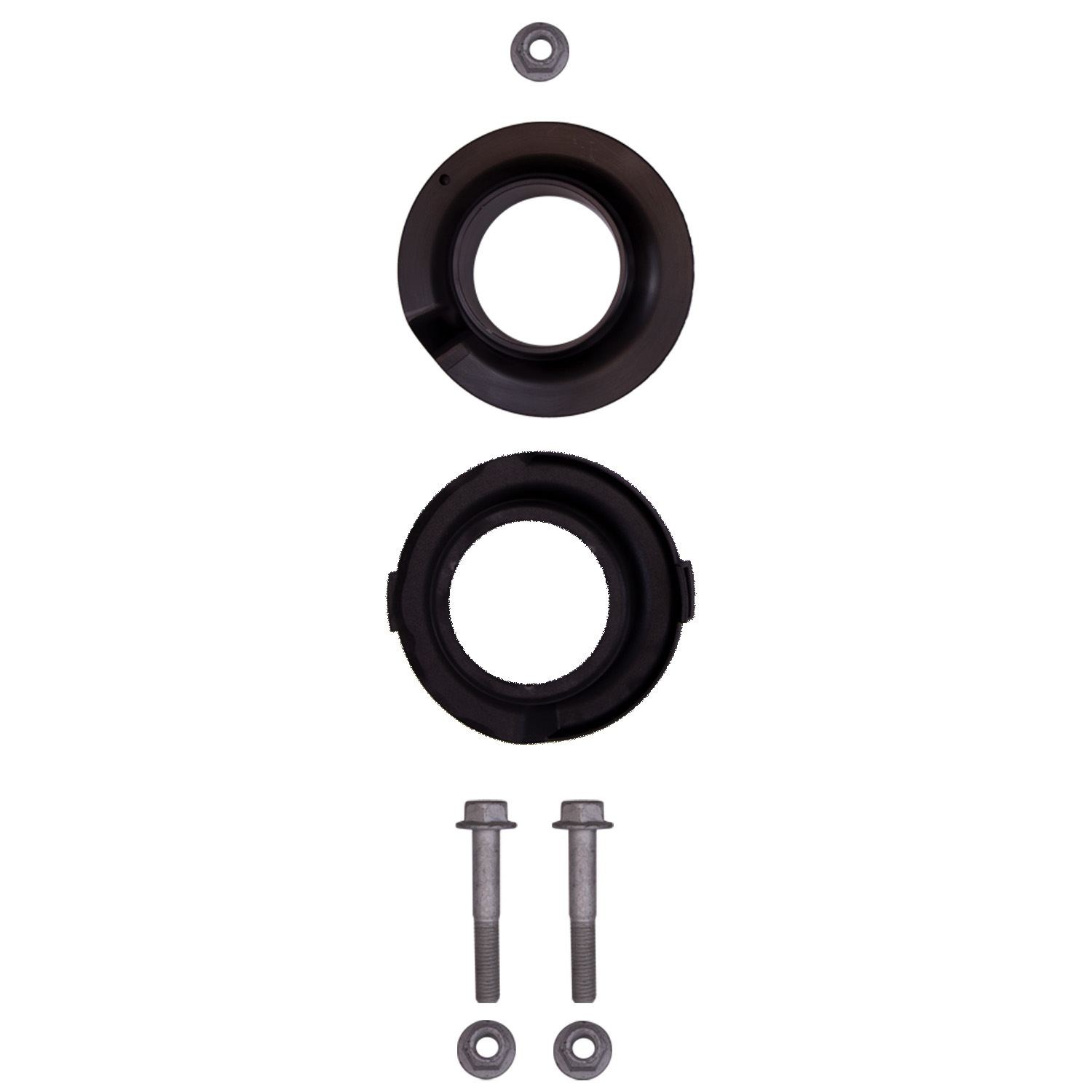

- Spring Seat Included :Yes
- Shaft Diameter :18mm
- Adjustable Damping :Non-Adjustable
Details:
Applications :Y
Country of Origin :US
Quantity per Vehicle :2
UPC :00651860887524
Warranty :Limited Lifetime Warranty
Position :Front
Applications:
Ford Bronco 4 Door 2021-2025
|
