B8 5100 (Ride Height Adjustable) - Suspension Front Shock Absorber (1)
- Provides 1-2.9" Front Lift Without Sasquatch Package
- 0-1.7" Front Lift With Sasquatch Package
Product Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Specifications:
- Collapsed Length (in) :16.62
- Extended Length (in) :22.80
- Collapsed Length (mm) :422.2
- Extended Length (mm) :579.2
- Stroke/travel Length (in) :6.17
- Lower Mount Type :Crossbar
- Upper Mount Type :Stem
- Internal Design :Monotube
- Finish :Zinc Plated
- Reservoir :No
- Body Design :Snap Ring Grooved Body (Coilover)
- Body Diameter (od) :2.0 in.
- Piston Diameter :46mm
- Boot Included :No

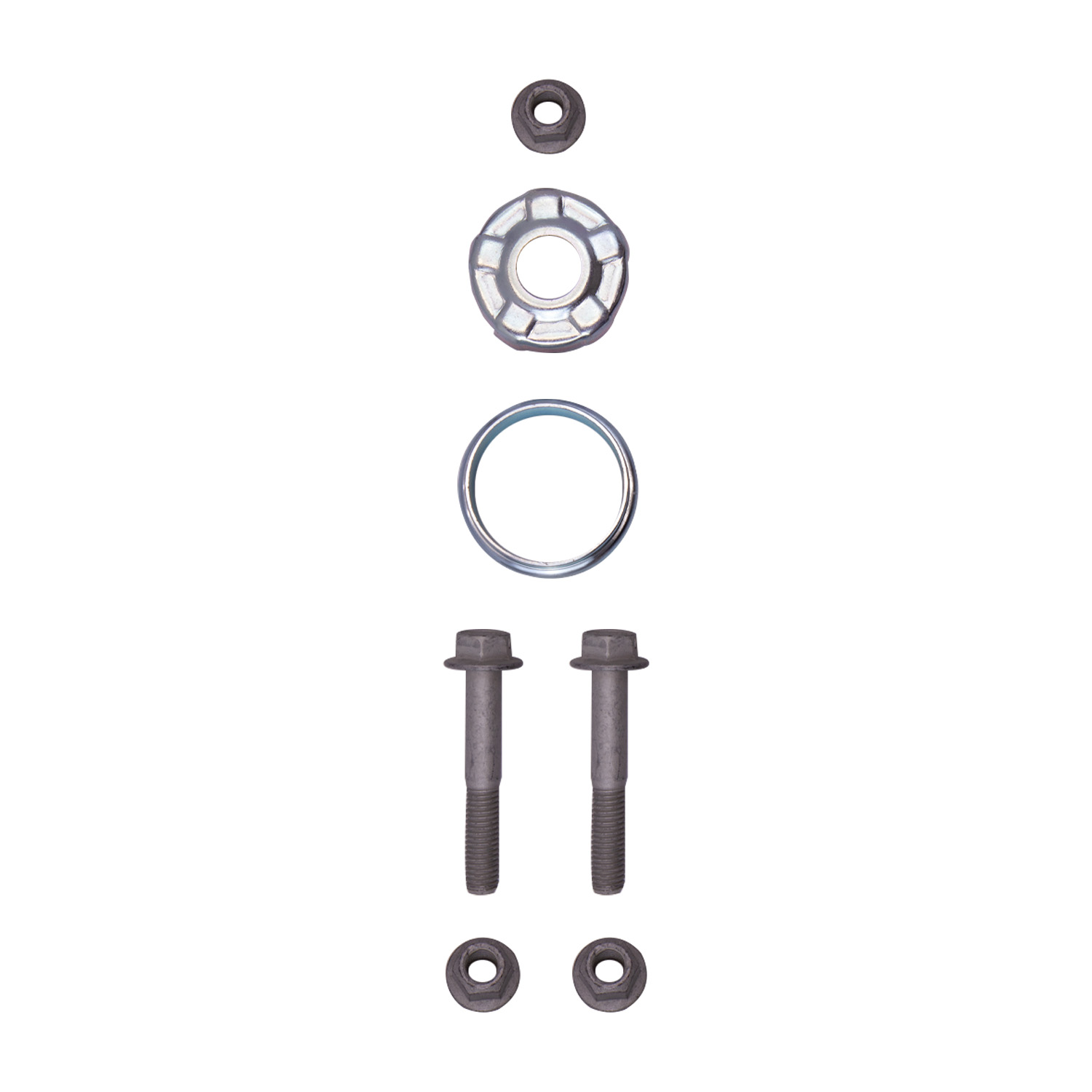

- Replacement Mounting Kit :B4-KT1-Z455A00
- Spring Seat Included :No - Reuse OEM
- Shaft Diameter :18mm
- Adjustable Damping :Non-Adjustable
Details:
Applications :Y
Country of Origin :US
Quantity per Vehicle :2
UPC :00651860891699
Warranty :Limited Lifetime Warranty
Position :Front
Applications:
Ford Bronco 2 Door 2021-2025
|
