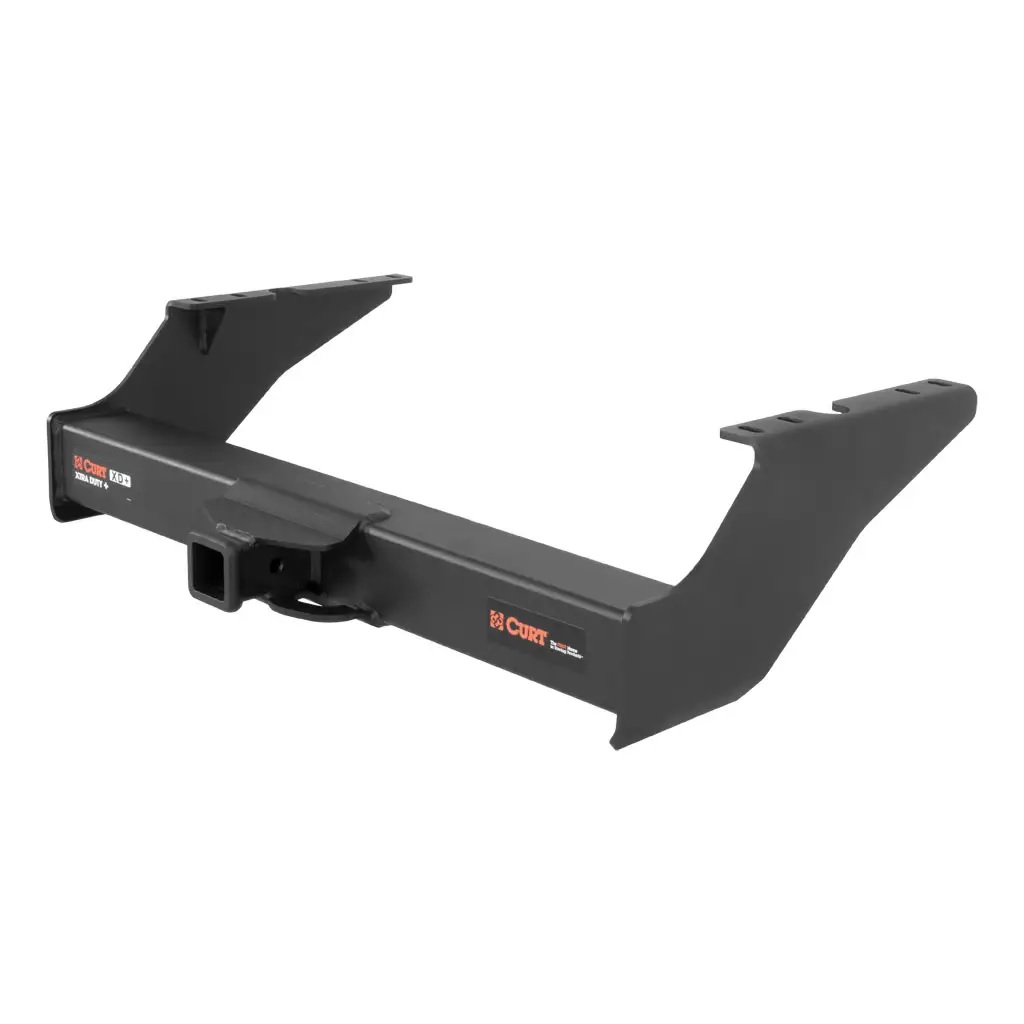

Curt Xtra Duty Class 5 Trailer Hitch, 2 Inch Receiver
- Select Ford F250, F350, F450
Note:
- Drilling Required - No
- Visibility - Exposed
FEATURES:
- Rated to 17,000 lbs. gross trailer weight and 2,550 lbs. tongue weight
- Compatible with weight distribution hitch (17,000 lbs. WD / 2,550 lbs. WDTW)

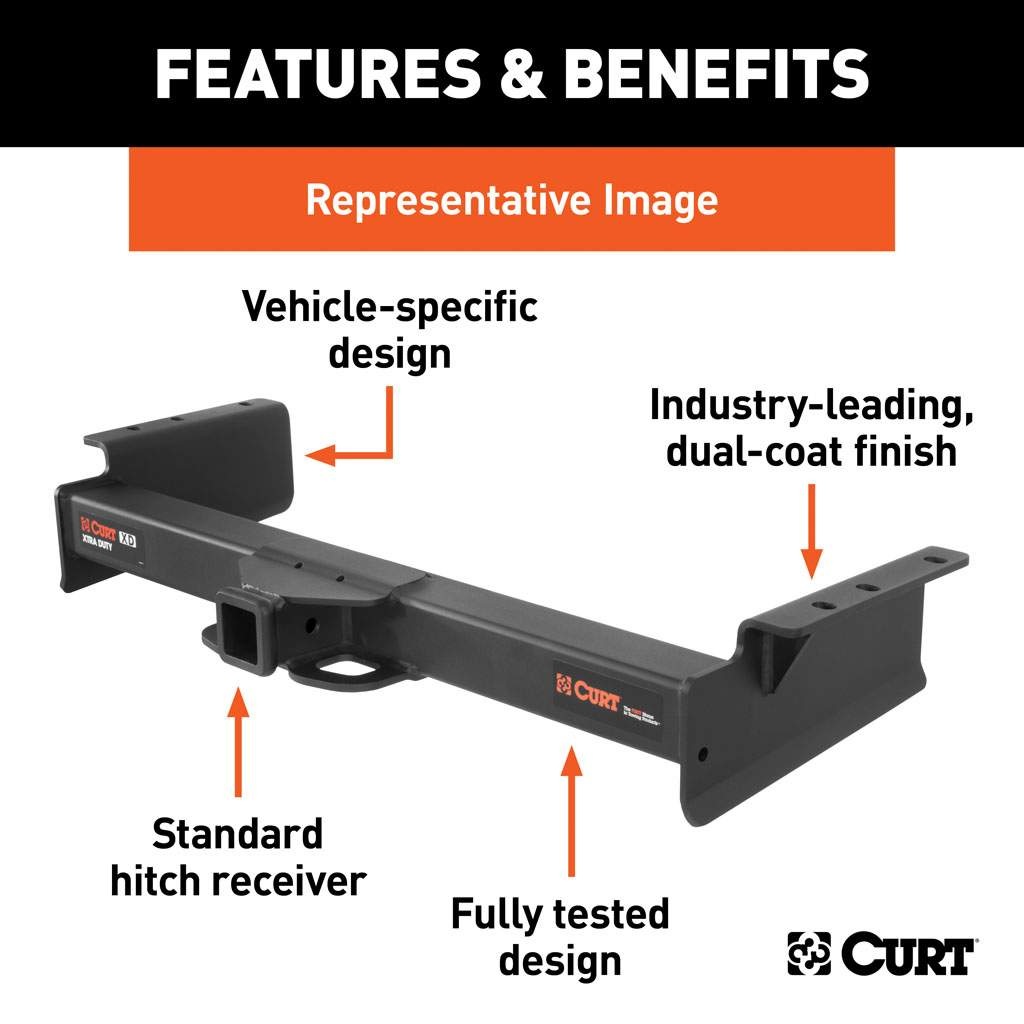

- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Constructed with a large, powerful main body
- Protected by a highly durable carbide powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Features wide safety chain openings for heavy-duty hooks
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Notes:
- Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
- Includes strong, grade-8 installation hardware
PRODUCT DETAILS
Hauling heavy-duty equipment to that next big job? Towing your yacht out to the lake for another weekend on the water? Bringing some livestock home to the farm from the county auction? Whatever towing hurdle you need to overcome, make it look easy with CURT.
CURT Xtra Duty class 5 trailer hitches go above and beyond in design, capacity and longevity to provide you with a dependable extension of your truck. These heavy-duty hitches are engineered to withstand the rigors of towing the largest of non-commercial trailers, matching the strength and dependability of full-size pickup trucks, vans and SUVs.
Each class 5 hitch is made for a vehicle-specific fit to ensure seamless integration and maximum towing power. This particular custom class 5 hitch is designed to mount onto certain years of the Ford F250 Super Duty, F350 Super Duty and F450 Super Duty (check the application information to verify that this hitch will fit your specific year, make, model and style). A vehicle-specific design also provides the easiest possible installation, reducing or completely eliminating drilling and modifications. This hitch comes with high-strength grade-8 hardware for a solid mount.
This class 5 Ford hitch is built with an extra-large main body. The hitch is constructed from high-strength steel, and the center section is made extra-large to achieve the necessary towing capacity for tough jobs. This particular hitch is tested and rated for 17,000 pounds gross trailer weight and 2,550 pounds tongue weight. It can also be used with a weight distribution hitch and is rated to 17,000 lbs. WD and 2,550 lbs. WDTW. This makes it the ideal choice for all varieties of heavy-duty trailers -- from full-size utility trailers and equipment haulers to horse trailers and yacht trailers (never exceed the lowest-rated towing component).
All CURT Xtra Duty class 5 hitches come with an industry-standard 2" x 2" receiver tube opening. This provides a versatile mount for a variety of heavy-duty ball mounts, pintle hitches, weight distribution hitches and other towing accessories. It can also readily accept a cargo carrier or bike rack for extra storage space. The 2" hitch receiver is equipped with a steel collar for added strength, and the back of the receiver is open to allow for easy clean-out of dirt and debris. To keep the receiver hitch clean, a hitch tube cover can be installed when not use, helping to protect it against grime and corrosion.

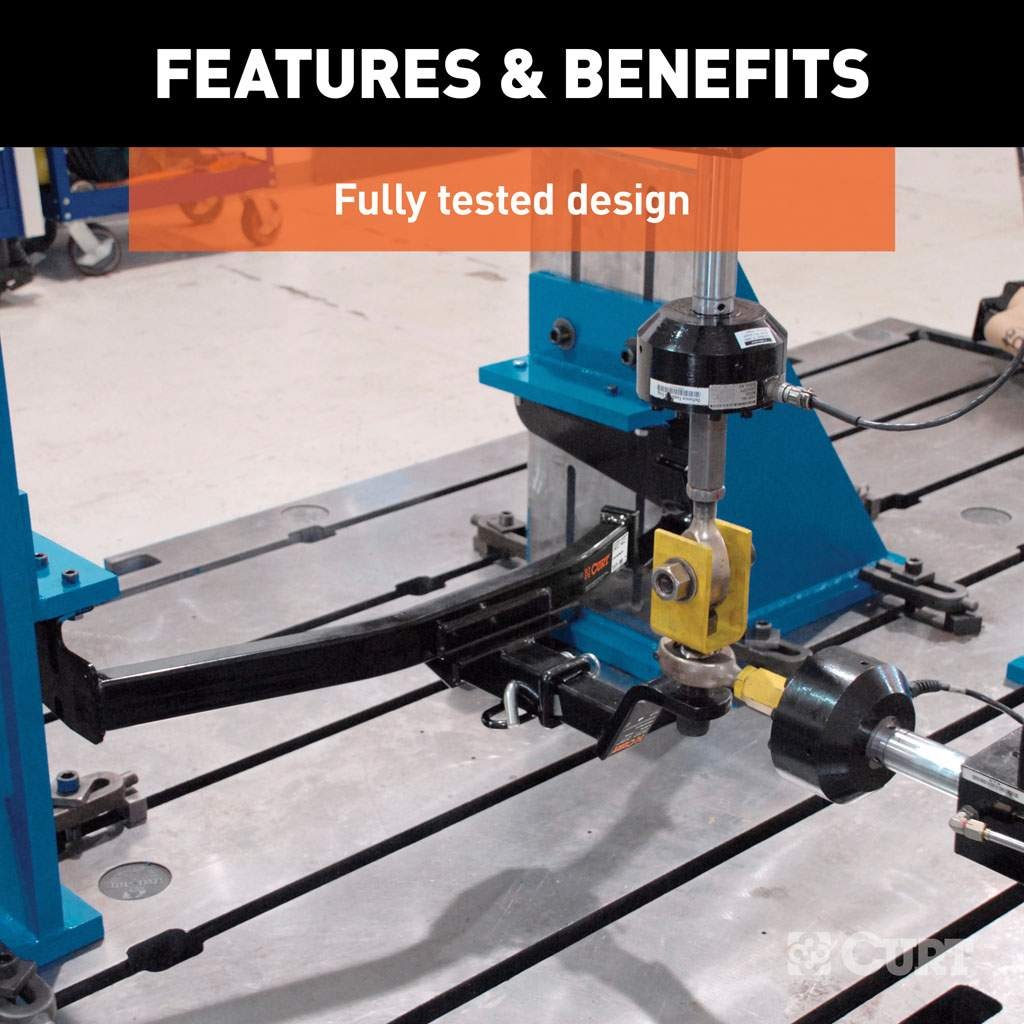

To give you confidence for the road ahead and ensure the safety of you and your loved ones, every CURT custom tow hitch design is thoroughly tested according to SAE J684. They test their hitches at their in-house testing facility in Detroit, MI, using real vehicles and multifaceted testing to simulate real towing conditions. All of Curt's class 5 hitches are constructed with large safety chain loops to accept heavy-duty hooks and safety chains.
Like all CURT custom tow hitches, their Xtra Duty class 5 hitches are made right here in the USA (may include imported hardware). They engineer each one using real vehicles to ensure a truly custom fit for each application. They fabricate and weld every trailer hitch using a combination of robotic and manual processes for absolute accuracy and efficiency.

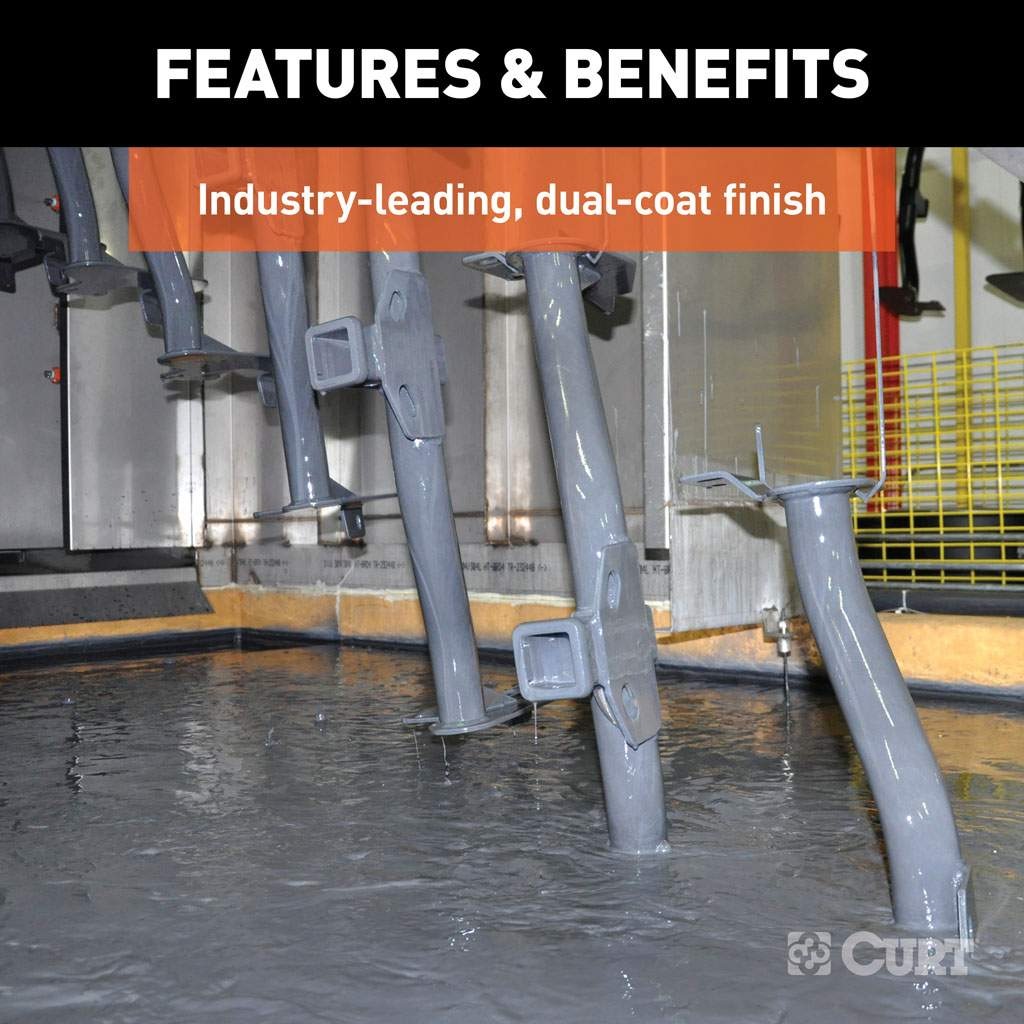

Finally, all of Curt's custom trailer hitches undergo an industry-leading finishing process for unparalleled rust, chip and UV protection. First the hitches are chemically and mechanically descaled for a smooth surface. Then, they are immersed in a liquid A-coat that covers the tow hitch inside and out with an initial rust-resistant layer. Next, a highly durable carbide black powder coat finish is applied over the A-coat. At last, the two finishes are cured together, forming a superior shield against scuffs, scratches and the elements.
CURT custom-fit trailer hitches are built for long-lasting dependability. Each one is backed by a limited lifetime warranty.
PRODUCT SPECIFICATIONS
- Color Black
- Drilling Required No
- Finish Powder Coated
- Installation Difficulty Novice
- Main Body Shape Square
- Material Carbon Steel
- Part Type Class 5 Xtra Duty
- Product Weight 70.000
- Receiver Tube Size 2 IN
- Tongue Weight (TW) 2,550 LB
- Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity (WC) 17,000 LB
- Weight Distribution (WD) 17,000 LB
- Weight Distribution Tongue Weight (WDTW) 2,550 LB
COMPATIBLE TRUCKS
1999 Ford F-250 Super Duty All
2000 Ford F-250 Super Duty All
2001 Ford F-250 Super Duty All
2002 Ford F-250 Super Duty All
2003 Ford F-250 Super Duty All
2004 Ford F-250 Super Duty All
2005 Ford F-250 Super Duty All
2006 Ford F-250 Super Duty All
2007 Ford F-250 Super Duty All
2008 Ford F-250 Super Duty All
2009 Ford F-250 Super Duty All
2010 Ford F-250 Super Duty All
2011 Ford F-250 Super Duty All
2012 Ford F-250 Super Duty All
2013 Ford F-250 Super Duty All
2014 Ford F-250 Super Duty All
2015 Ford F-250 Super Duty All
1999 Ford F-350 Super Duty Excluding Cab & Chassis
2000 Ford F-350 Super Duty Excluding Cab & Chassis
2001 Ford F-350 Super Duty Excluding Cab & Chassis
2002 Ford F-350 Super Duty Excluding Cab & Chassis
2003 Ford F-350 Super Duty Excluding Cab & Chassis
2004 Ford F-350 Super Duty Excluding Cab & Chassis
2005 Ford F-350 Super Duty Excluding Cab & Chassis
2006 Ford F-350 Super Duty Excluding Cab & Chassis
2007 Ford F-350 Super Duty Excluding Cab & Chassis
2008 Ford F-350 Super Duty Excluding Cab & Chassis
2009 Ford F-350 Super Duty Excluding Cab & Chassis
2010 Ford F-350 Super Duty Excluding Cab & Chassis
2011 Ford F-350 Super Duty Excluding Cab & Chassis
2012 Ford F-350 Super Duty Excluding Cab & Chassis
2013 Ford F-350 Super Duty Excluding Cab & Chassis
2014 Ford F-350 Super Duty Excluding Cab & Chassis
2015 Ford F-350 Super Duty Excluding Cab & Chassis
2016 Ford F-350 Super Duty Excluding Cab & Chassis
2008 Ford F-450 Super Duty Excluding Cab & Chassis
2009 Ford F-450 Super Duty Excluding Cab & Chassis
2010 Ford F-450 Super Duty Excluding Cab & Chassis
2011 Ford F-450 Super Duty Excluding Cab & Chassis
2012 Ford F-450 Super Duty Excluding Cab & Chassis
2013 Ford F-450 Super Duty Excluding Cab & Chassis
2014 Ford F-450 Super Duty Excluding Cab & Chassis
2015 Ford F-450 Super Duty Excluding Cab & Chassis
2016 Ford F-450 Super Duty Excluding Cab & Chassis
