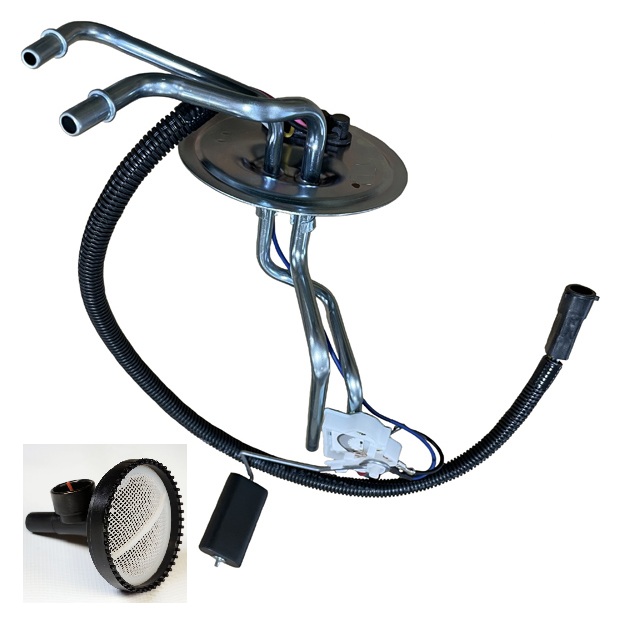

1994-1997 Ford F-Series 16 Gallon Sending Unit Diesel - Side Tank

Restore accurate fuel level readings with this direct-fit sending unit designed for 1994–1997 Ford Full-Size Pickup trucks equipped with a 16-gallon diesel front, side, midship fuel tank. Built to match factory specifications, this unit ensures reliable operation and proper gauge function.

Features:

• Fits 1994–1997 Ford® F-Series Full-Size Pickup
• For 16-gallon diesel side tank (front, side, midship)
• Direct replacement for factory sending unit
• Restores accurate fuel level readings
• Durable construction for long service life

Wiring Identification:

• Yellow wire = Sending Unit Hot
• Gray wire = Sending Unit Ground
• Pink/Black wire = Not used (dead)
• Black wire = Not used (dead)

Specifications:

• Ohm Range:
• Full: 155–165 ohms
• Empty: 5–16 ohms

Perfect for repairs or restoration, this sending unit provides a dependable solution for bringing your fuel gauge back to proper working condition.
