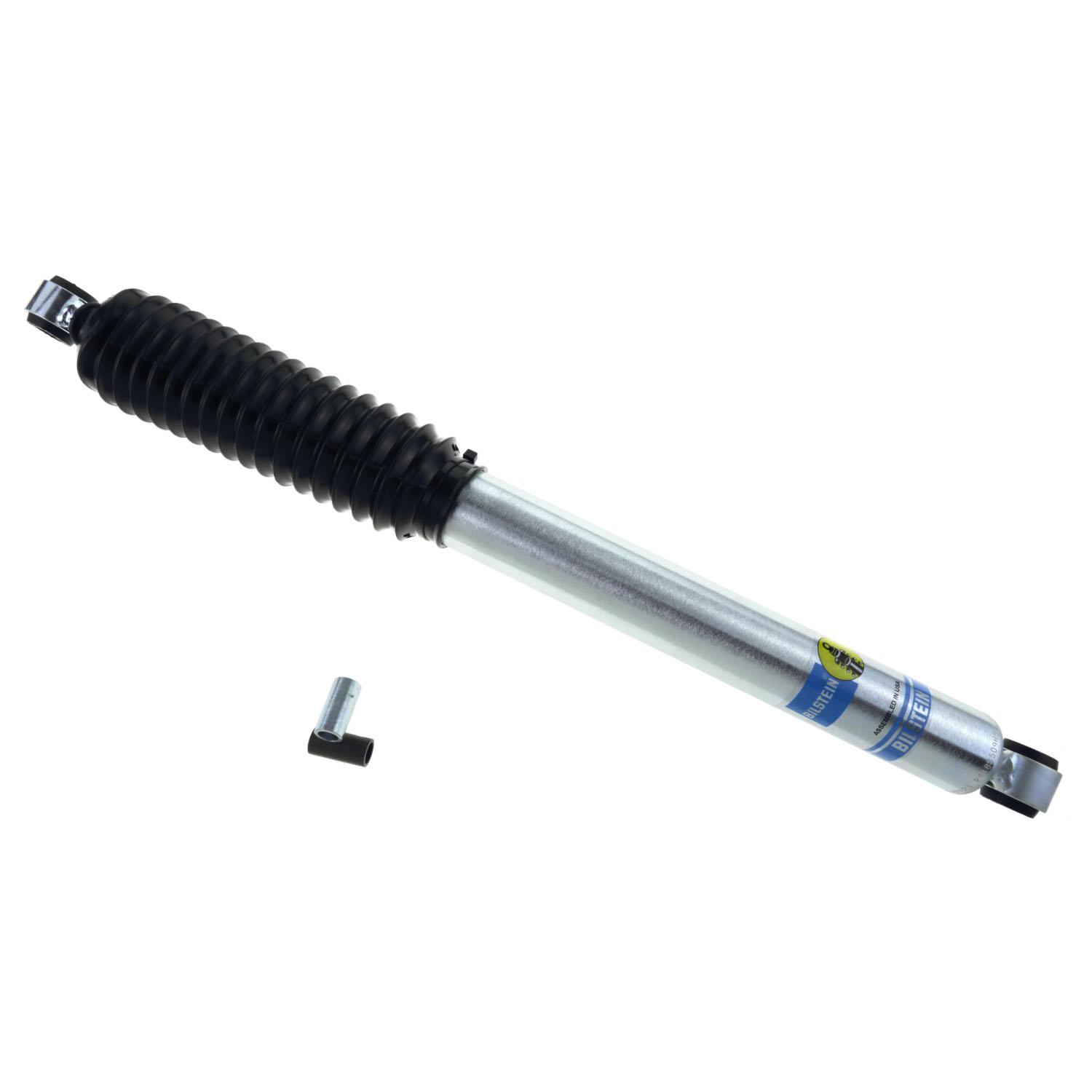

Bilstein B8 5100 - Suspension Shock Absorber
- Fits Vehicles With 4" Rear Lift
Product Description
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Specifications:
Collapsed Length (in) :16.14
Extended Length (in) :26.16
Collapsed Length (mm) :410.0
Extended Length (mm) :664.5
Stroke/travel Length (in) :10.02
Lower Mount Type :Eye 16mm
Upper Mount Type :Eye 16mm
Internal Design :Monotube
Finish :Zinc Plated
Reservoir :No
Body Design :Smooth Body (Non-Coilover)
Body Diameter (od) :2.0 in.
Piston Diameter :46mm
Boot Included :Black Bellows
Replacement Mounting Kit :B4-KT1-Z235A00
Spring Seat Included :No
Shaft Diameter :14mm
Adjustable Damping :Non-Adjustable
Details:
Applications :Y
Country of Origin :MX
Quantity per Vehicle :2
UPC :00651860453590
Warranty :Limited Lifetime Warranty
Position :Rear
Applications:
1984-90 Ford Bronco II
1990-94 Ford Explorer
1983-11 Ford Ranger
|
