ADJUSTABLE TRUCK SLEEVES - PAIR

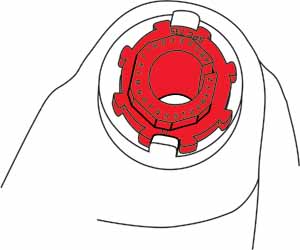

The factory camber bushings, located above the upper ball joints, alter camber by changing the ball joint stud angle.
Adjustable camber/caster bushings offer a greater adjustment range than stock, and are normally needed with 1" to 2" lift coils.
With most trucks, if the full degree of correction is not needed for camber, the remainder can be rotated into caster.
This sleeve will easily change Camber and/or Caster from .75 to 2.75° for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install new adustable sleeve.
- Easily change caster / camber or both at the same time
- Adjust camber/caster with ease
- Increased range for both caster/camber angles
- Clear Zinc coating for corrosion resistance

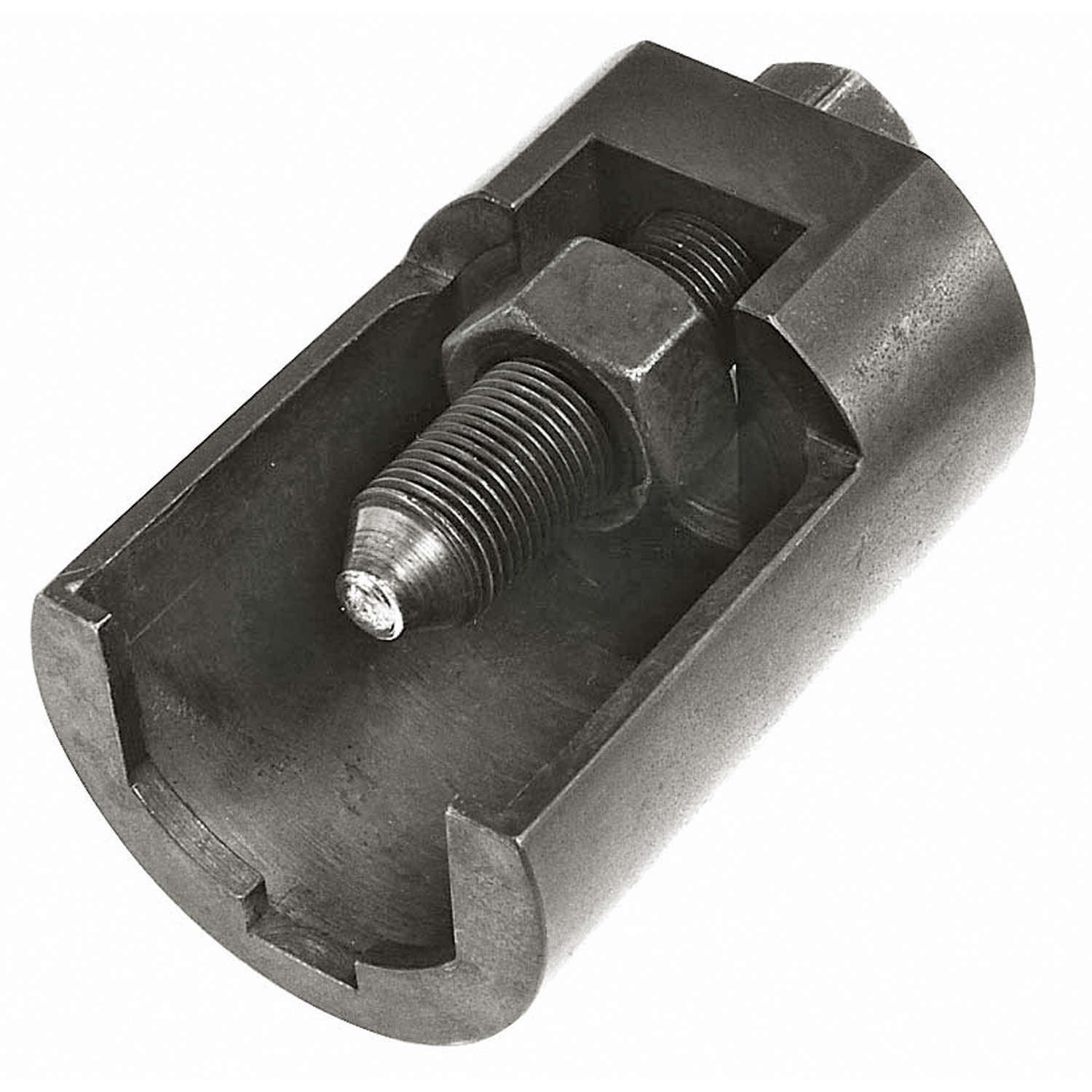

- Recommended Tools: 77880 - Sleeve Puller
- Single sleeve replaces multiple fixed position sleeves
- Front Adjustment Range: Camber/Caster ±.75 to 2.75°
- Required: 1 per wheel
https://youtu.be/WM0_VCBhzBo?si=ovaxcfgSGulk4lpN
VEHICLE FITMENTS:
Ford Bronco 1980 - 1996
Ford F-150 1980 - 1996
Ford F-250 1980 - 1998
|
