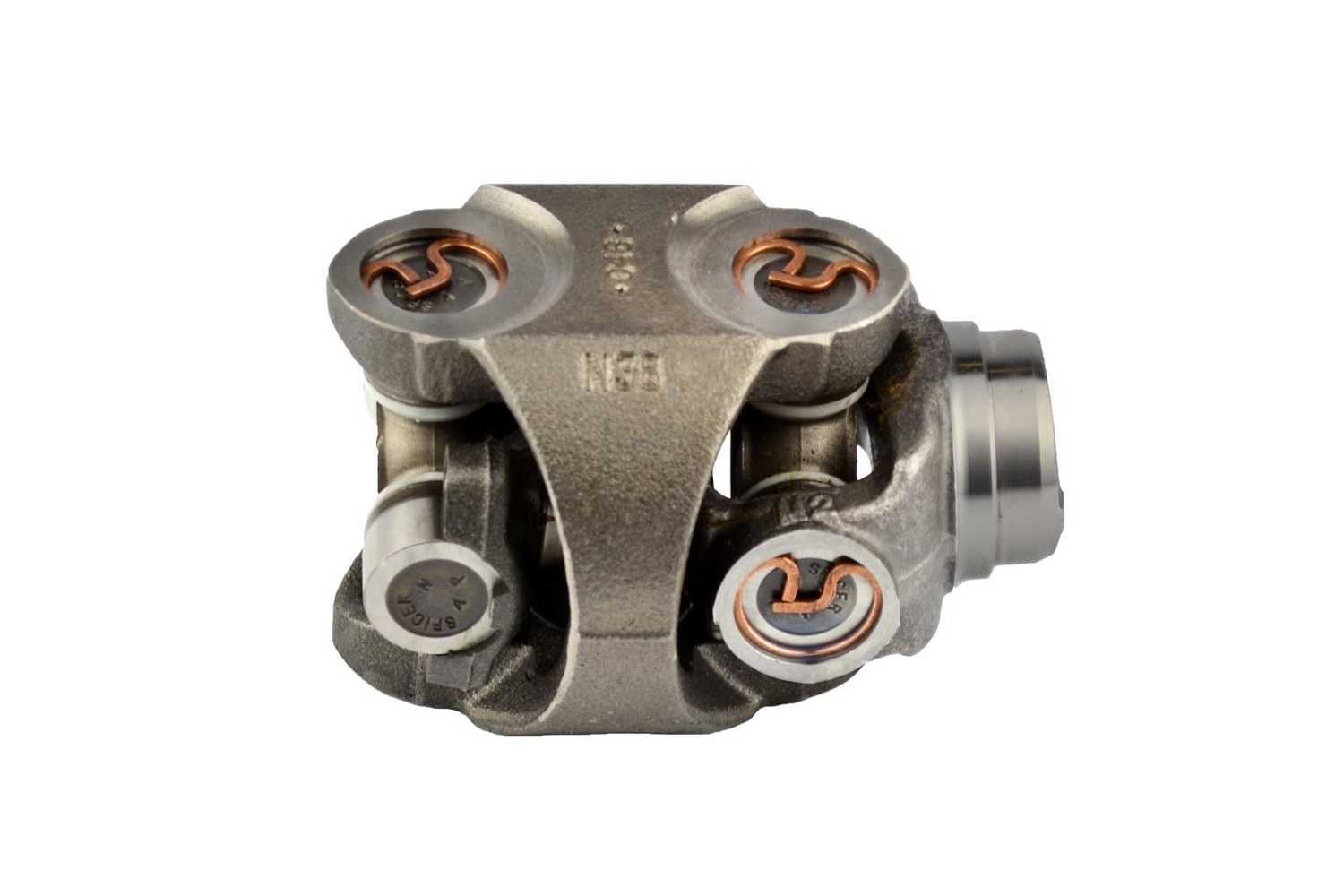

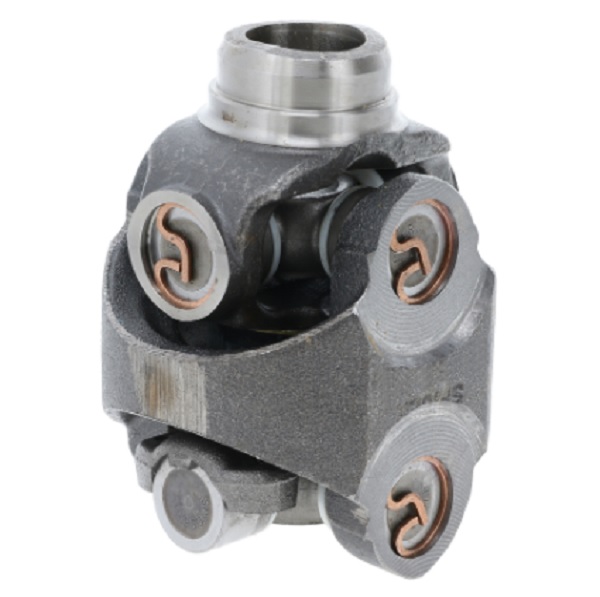

1310 Series Dana Spicer Double Cardan CV Head Assembly

923289 Dana Spicer Double Cardan CV Head

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

• Brand Spicer

• Bolt Hole Spacing Height (In) 2.343

• Bolt Hole Spacing Width (In) 1.500

• Butt Diameter (In) 1.766

• Cl To Cl Of Center Yoke (In) 2.688

• Cl To Point Of Weld (In) 1.440

• Country of Origin USA

• Cv Head Style HALF ROUND

• Greaseable N

• Gross Weight 7.2 LB

• Joint Angle 26

• Material Steel

• Overall Length (In) 4.120

• Series 1310, 1310 C.V.

• Tariff Code 8708998175

• Tubing Diameter And Wall 2.00 X .120

• VMRS Code 024002069

• Yoke Hole Or Thread Size (In) .312-24

NOTE: THIS MUST BE WELDED TO THE TUBE SHAFT
