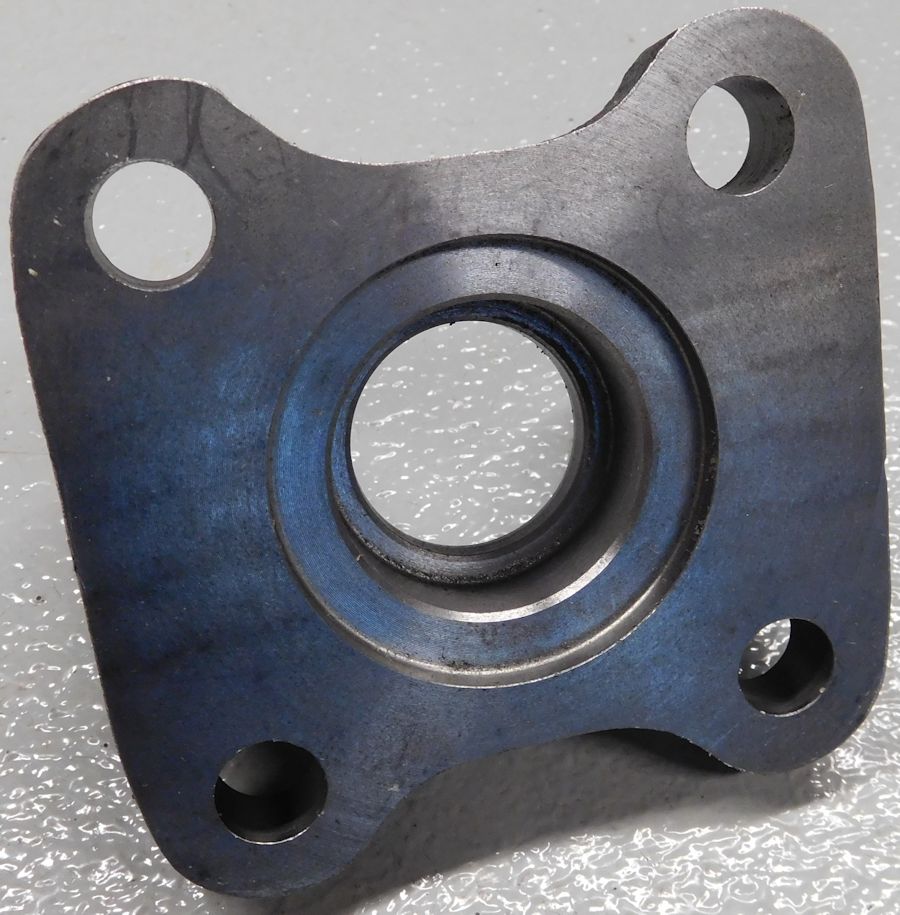

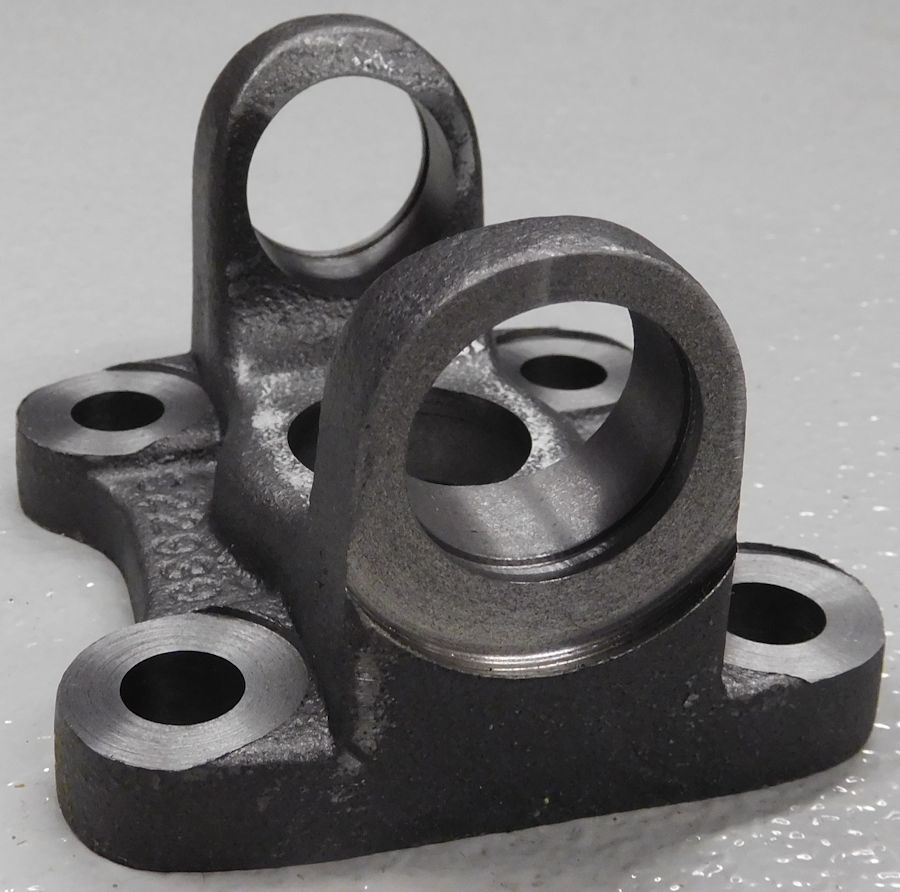

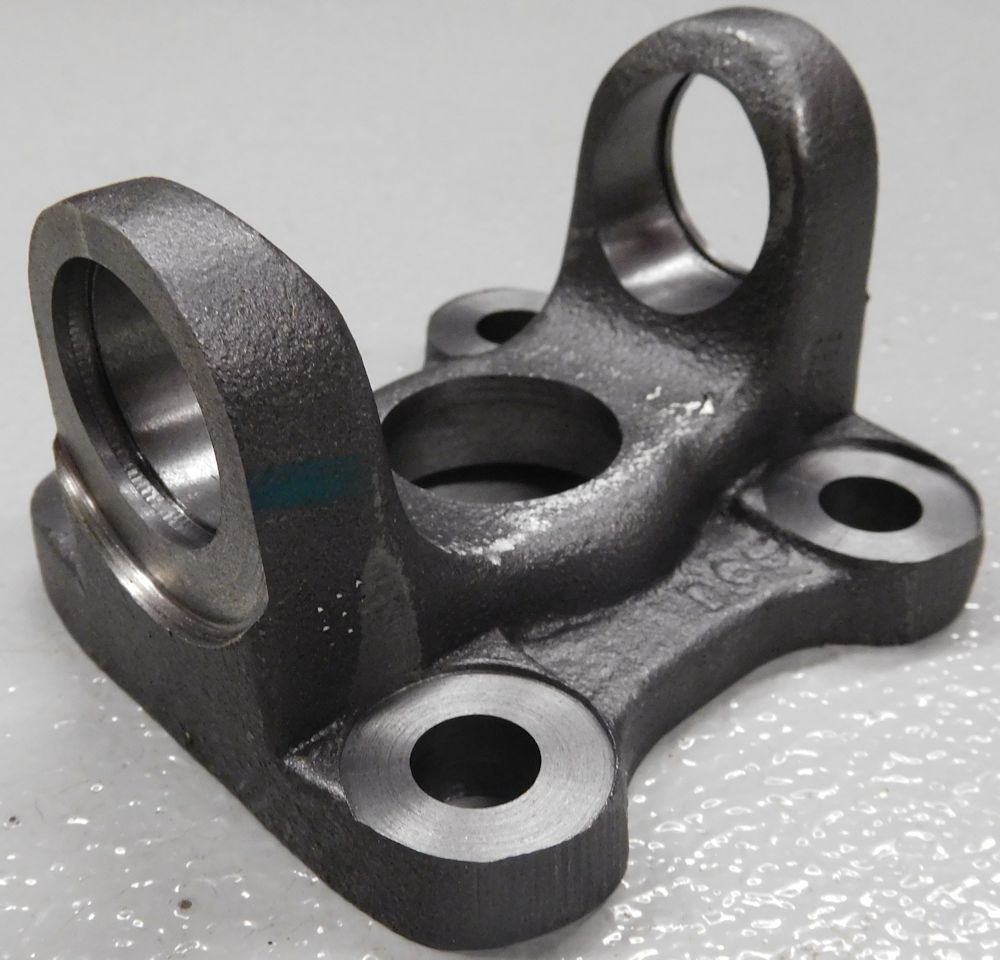

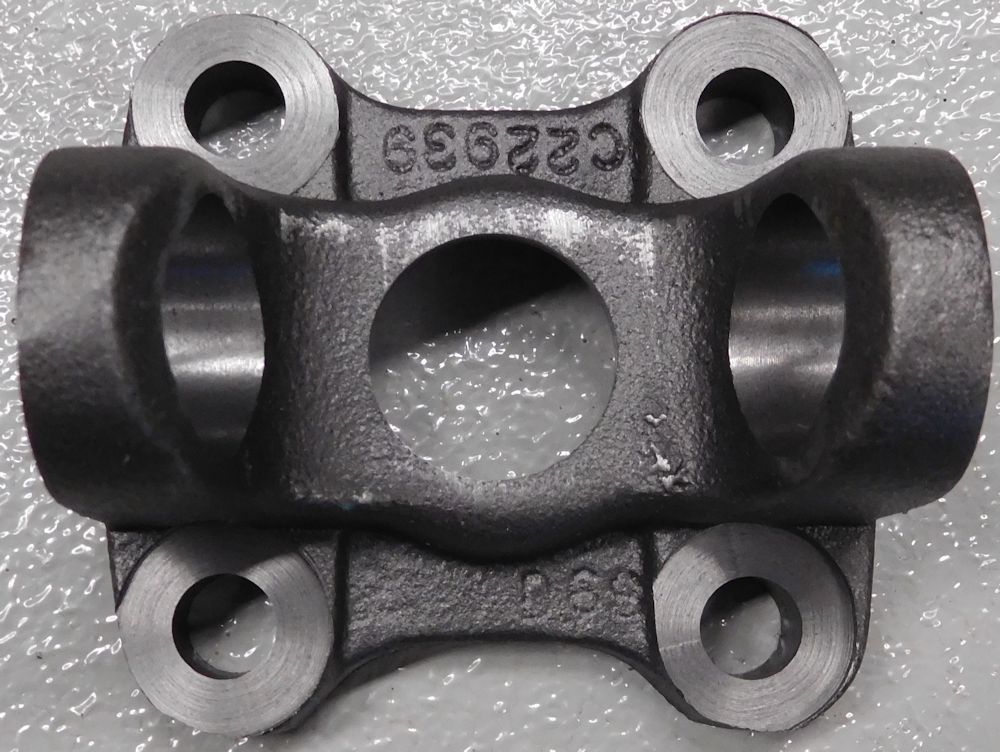

1310 Driveshaft Flange Yoke

1310 Driveshaft Flange Yoke
Images/9096cmpnflng.jpg Images/spicer_flange_measure_1.jpg
Item Number: 92478
  Be the first to review this item
Size/Color
Quantity

Manufacturer Part Number2-2-939
New
Dana Spicer OE
1984-90 Ford Bronco II
1983-95 Ford Ranger
1998-2003 Ford Explorer
CHECK DIMENSIONS
 Detailed Description
Uses a 1310 series joint
Other Recommended Parts:
Seal
Pinion Nut

Series 1310
Flange Or Swing Dia. In. (A) 4.500
Bolt Circle Dia. In. (B) 3.500
Bolt Hole Dia. In (B) .500 - DRILLED
Number Of Bolt Holes 4
Pilot Dia. M=Male F=Female (C) 2.000 - FEMALE
Flange Face To C/L In. (G) 1.650
Material Steel
Outside Yoke Dimension In.(E) 3.469
Yoke Bearing Dimension In. (D) 1.062
Design Square
Package Type EACH
Package Qty 1
Weight 1.75 LB
