ROUGH COUNTRY 4.5 INCH LIFT KIT
FORD SUPER DUTY 4WD (2008-2010)
OVERVIEW
This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.
FEATURES
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- Does NOT fit V-8 gas engine models.
- Does NOT fit dually models.
- V-10 gas engine models will require exhaust modification to clear the front driveshaft.
- If vehicle is equipped with rear overload leafs, they will need to be removed.
Est. Install Time 6-8 hours

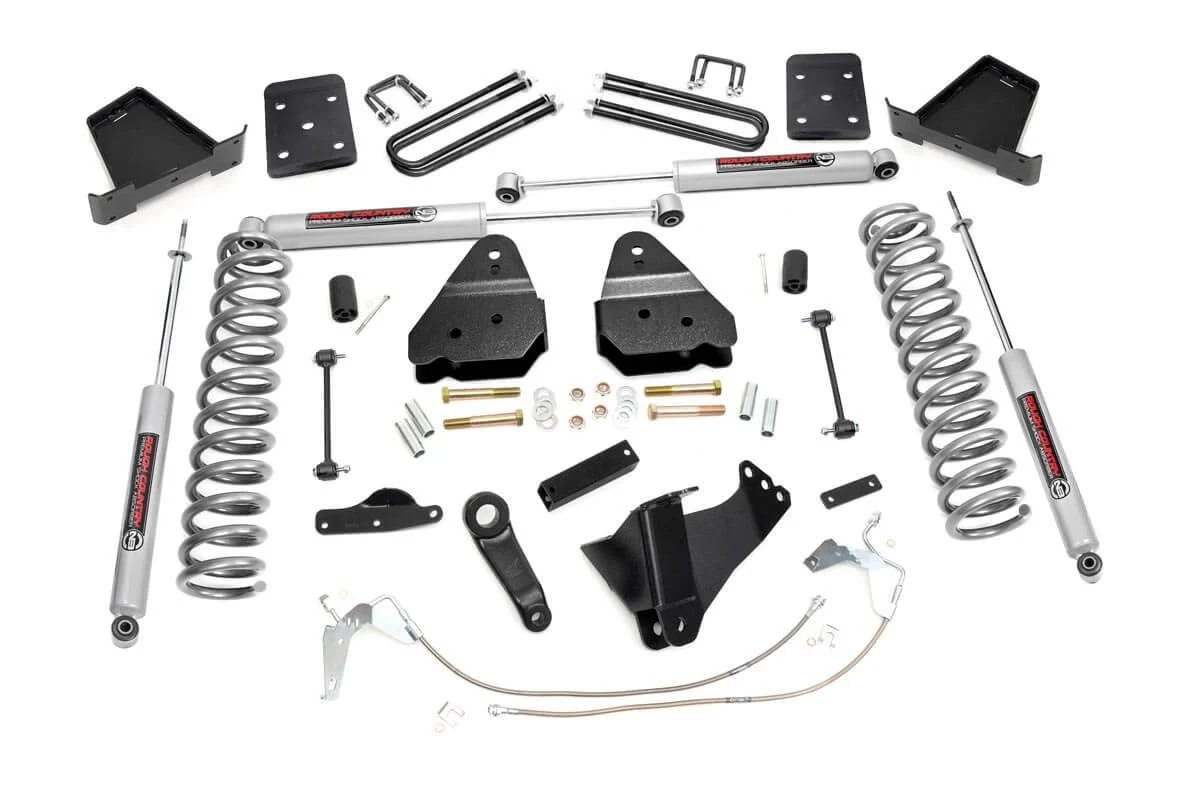

IN THE BOX
FRONT
Lifted coil springs
Radius arm drop brackets
Extended sway-bar links
Track bar drop bracket
Pitman arm
Stainless steel braided brake lines
Bumpstop spacers
Hardware
REAR
Fabricated anti-wrap lift blocks
Carrier bearing drop bracket
U-bolts
Hardware
SHOCKS
(4) Premium N3 series
PREMIUM N3 SHOCKS
10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Metallic Silver Paint
Silver powder coat finish
3-year Manufacturer's Warranty
|
